YS6080 Pulsed Xenon lamp Benchtop Spectrophotometer

Unrivaled Precision for Laboratory-Grade Color Analysis

Elevate Color Quality with Stable Xenon Illumination & Benchtop Performance. YS6080 Color Spectrophotometer is a high-tech device analyzing light’s spectral composition to measure color accurately. Using diffraction gratings or prisms, it splits light into wavelengths, enabling precise quantification of color parameters like hue, saturation, and brightness.


Key Highlights

  • 360nm-780nm Xenon Lamp, 400nm/420nm/460nm cut-off Xenon Lamp

  • High accuracy: Repeatability up to ΔE*ab 0.12

  • Inter - instrument Error Control (ΔE * AB≤0.12)

  • 7" TFT Capacitive Screen-touch Display

  • Data Storage: Standard 4000 Pcs, Sample 50000 Pcs

  • Ideal for color analysis within R&D and laboratory environments

YS6080 Pulsed Xenon lamp Benchtop Spectrophotometer Instructions Operating Manual YS6080 Pulsed Xenon lamp Benchtop Spectrophotometer PDF
This YS6080 Pulsed Xenon lamp Benchtop Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Professional Solution for Accurate Color Matching & QC

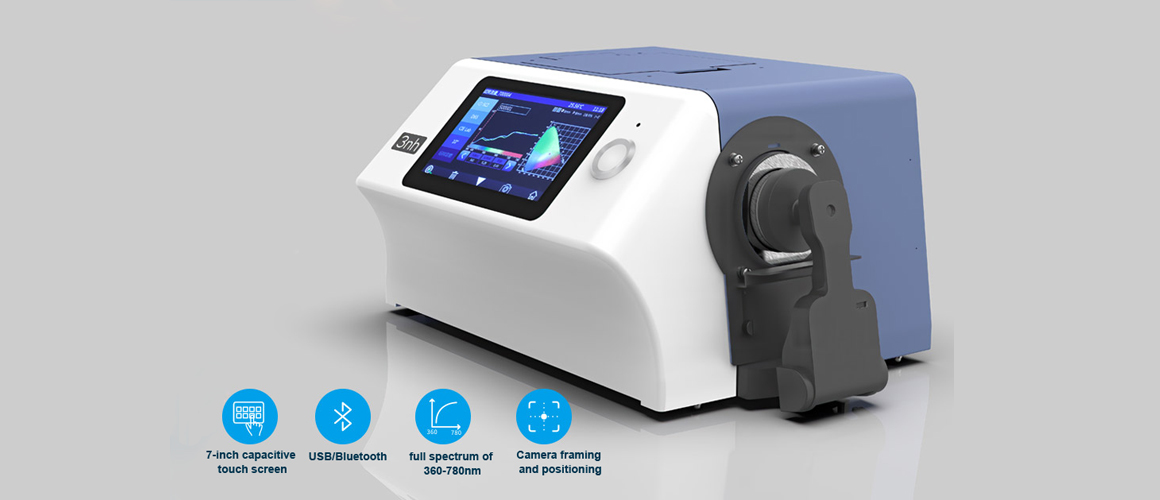

YS6080 is a benchtop grating spectrophotometer which is developed by 3nh independently with independent intellectual property. YS6080 has many features, like 7 inches TFT capacitive touch screen display, full illuminants, reflective d/8 and transmissive d/0 geometry (including or excluding UV). With very stable and precise color measurement, large storage and powerful PC software all makes YS6080 ideal for color analysis within R&D and laboratory environments.

 Advanced_Benchtop_Grating_Colorimeter_ys60801


Qualified Color Measurement – Ensuring Consistent Results


Accurate color reproduction is critical across a wide range of industries. Whether in textile manufacturing, food packaging, cosmetics production or technical plastics, precise and repeatable color measurement results are indispensable for quality assurance, brand color consistency and compliance with international standards.

With professional color measuring instruments from 3nh, you can carry out fast, reliable color inspection tailored to your production workflows. Our diverse product lineup offers multiple measurement options depending on your requirements: from convenient, high-efficiency colorimeters for routine QC tasks to high-precision spectrophotometers designed for advanced spectral color analysis.


Advantages of Our Digital Color Measurement Instruments


Our instruments empower your quality teams to achieve the following capabilities:


Objective color analysis based on multiple color spaces including CIE Lab*, RGB, HEX and ΔE (Delta E)

  • Objective color analysis based on multiple color spaces including CIE Lab*, RGB, HEX and ΔE (Delta E)

  • Reliable evaluation of color values for diverse surfaces and material types

  • Digitized color control covering incoming material inspection, in-line production monitoring and finished goods final testing

  • Laboratory-grade color measurement that delivers internationally standardized, traceable test results

  • Portable colorimeters for on-site mobile measurement, powered by rechargeable batteries

  • Seamless integration with dedicated software solutions for automatic data transmission, record archiving and batch report generation


YS6080 Spectrophotometer Features



1, High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Bluetooth 2.1; Concave Grating.

2, Double Array 256 Image Element CMOS Sensor; Long life-span stable xenon lamp.

3, With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission.

4, Auto identify measuring aperture. Freely switchable between 3 measuring apertures: Φ 25.4mm/8mm/4mm. Users also can customize apertures.

5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision.

6, Wavelength range 360nm – 780nm. Built-in 400nm/420nm/460nm cut off Xenon lamp, more professional in UV measurement.

7, Independent light source detector, continuously monitor the condition of light sources to ensure the light source reliable.

8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement.

9,A variety of optional accessories: Reflection sample holding tool, transmission fixture, micro 4mm aperture transmission test components, instrument inversion test components, applicable to more working conditions.

10, Big capacity data storage, for 20000 pieces test result.

11, Built-in camera locating.

12, More powerful extended functions at the PC software.



YS6080 Application Industry



YS6080 benchtop spectrophotometer is used to do precise color analysis and transmission in laboratories. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food, science institutes, laboratories.


YS6080 Optional Accessories

Meet more needs for customers

The instrument is equipped with a variety of optional accessories: Micro printer, instrument inverted test fixture, petri dish, Meet customer multi-sample measurement.


Petri dish

It can be used to test liquid reagents, sauces (such as ketchup, paint), powders (such as coffee), color masterbatches, etc.


Test Fixture Assembly

Microhole (4mm) transmission test fixture assembly, Make sure the petri dish is fixed for measurement.



Film fixture

Easy film sample measurement.

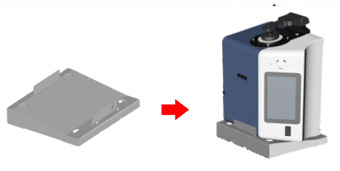

Instrument upside down test fixture

Meet more sample measurement needs; Measurement is more convenient and flexible.

Threenh: Your Partner in Precision and Innovation

Here at Threenh, we know our clients are looking for color measurement equipment that performs consistently and makes good business sense. Our focus is on supplying cost-effective and innovative solutions that help improve color quality and productivity.

Our lineup of colorimeters, from the versatile NH310 colorimeter to the high-performance TS8560 spectrophotometer, is put together to give you the kind of accurate, repeatable readings that are essential in the printing, textile dyes and Pharmaceuticals business and other demanding industries.

If you are looking to improve the accuracy and efficiency of your color quality control, contact Threenh today. Let's discuss our range of innovative and cost-effective color management solutions and find the right fit for your operation.




ModelYS6080(Pulsed xenon lamp)
Optical GeometryReflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle);
SCI (specular component included)/SCE (specular component excluded);Include UV / excluded UV light source;
Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing);
SCI (specular component included)/SCE (specular component excluded);Include UV / excluded UV light source;
Haze(ASTM D1003);
Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
Integrating Sphere SizeΦ 154mm
Light Source Device360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp,420nm cut-off Xenon Lamp,460nm cut-off Xenon Lamp
Spectrophotometric ModeConcave Grating
Sensor256 Image Element Double Array CMOS Image Sensor
Wavelength Range360-780nm
Wavelength Pitch10nm
Semiband Width5nm
Reflectance Range0~200%
Measuring ApertureReflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ30mm/Φ25mm;Remark: 1. Automatic identification of switch caliber   2. Customized Configuration caliber and lens position
Specular ComponentReflectance: SCI&SCE
Transmittance: SCI&SCE
Color SpaceCIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy
Color Difference FormulaΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99
Colorimetric IndexWI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
APHA/Hazen/Pt-Co, Saybolt
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
Gardner Index, 555 Index, Haze(ASTM D1003)
Observer Angle2° & 10°
IlluminantsD65,A,C,D50,D55,D75, F1,F2,F3,F4,F5,F6, F7,F8,F9,F10,F11,F12, CWF,DLF,TL83,TL84,TPL5,U30
Displayed DataSpectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset
Measuring TimeAbout 2.4s (Measure SCI & SCE about 5s)
RepeatabilitySpectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.012 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%)
Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument ErrorΦ25.4mm/SCI, Within ΔE*ab 0.12
(Average for 12 BCRA Series II color tiles)
Size370×300×200mm
WeightAbout 9.6kg
Power SupplyDC 24V, 3A Power Adapter
Light Source Device Life5 years, more than 3 million times measurements.
Display7" TFT Capacitive Screen-touch Display
Data PortUSB & Bluetooth & Print serial port
Data StorageStandard 5000 Pcs, Sample 40000 Pcs
LanguageSimplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish)
Working EnvironmentTemperature: 0~40℃; Humidity: 0~85% (No Condensation)
Storage EnvironmentTemperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard AccessoryPower Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component
Optional AccessoryMicro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components, culture dish
Notes: The specifications are subject to change without notice.



Our Valued Clients

  • customer century laminate
  • customer hms logo
  • customer shakti
  • vogels logo vector
  • customer swaraj
  • partner axa
  • studds logo
  • partner vishay logo

FAQs About  Benchtop Spectrophotometers

At most of time, we have Spectrophotometer stock in the factory. Generally it is 1-3 working days after the payment confirmed. After shipped, we will email you the tracking number. You can check the shipping status of your order on the website. If you are in urgent need, we can consider making special arrangement for you.

A colorimeter is sufficient for basic, routine color checks, while a spectrophotometer is needed for precise, comprehensive color analysis—here’s the clear breakdown:

When a Colorimeter is Sufficient

  1. Simple color matching needs: Ideal for checking if a sample matches a predefined standard (e.g., basic paint batches, plastic parts with solid colors).

  2. Consistent lighting conditions: Works well when measurements are done under fixed, standard light sources (no need to account for varied light effects).

  3. Cost-sensitive, high-volume tasks: Perfect for production lines requiring fast, low-cost color checks without advanced data analysis.

When to Use a Spectrophotometer

  1. Precise color quantification: Necessary for measuring Lab values (lightness, red-green, yellow-blue axes) or detecting subtle color deviations (critical for automotive coatings, high-end textiles).

  2. Complex color analysis: Required for metallic/pearlescent finishes, transparent materials, or samples with gloss/texture variations.

  3. Compliance and documentation: Essential when precise color data (spectral curves) is needed for quality audits, regulatory compliance, or brand color standardization.


Yes, we offer free samples for test, you are welcome to order samples to experience our excellent quality and service.

When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.

Now our testing machines have been sold to more than 80 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on. We sell to the global market.

With centers in 20 countries, including India, Japan, USA, Germany, Singapore, China, South Korea, and Taiwan, Threenh Technology’ s service network aims to provide customers with convenient access to service globally. With over 1 million measuring instruments sold, our expertise is our greatest asset, enabling us to work with our customers on solutions to complex measurement challenges.
