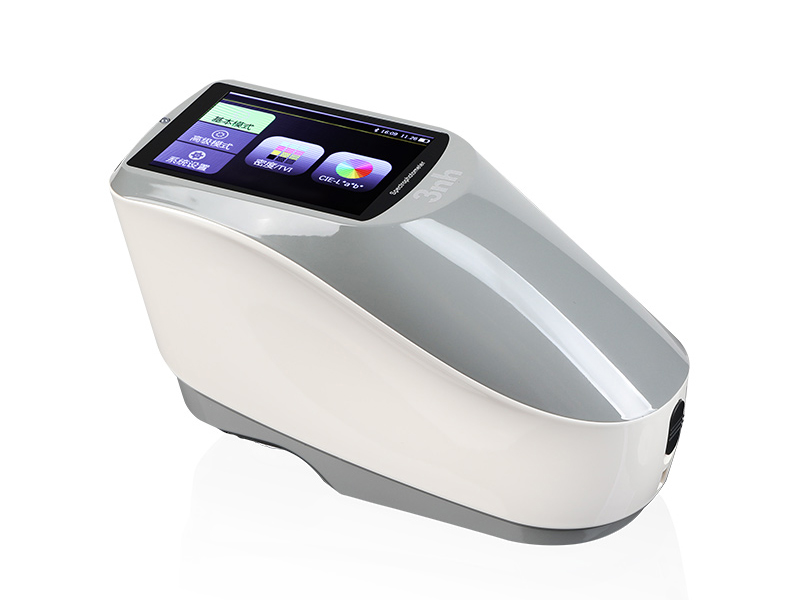

Spectrodensitometer Instruments

Color-Densitometer Spectrodensitometer is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing.

The Best Spectrodensitometer on the Market

One-Button Measurement Density CMYK, Chroma LAB

Grating Spectrodensitometer - dedicated to the printing industry, The Color & Density Meter quantifies ink density, analyzes spectral reflectance/transmittance across wavelengths (typically 400–700nm), and calculates color parameters like CIE Lab and ΔE for quality control. 3nh Density-Color Measuring Instrument precisely measures the reflectance data of samples. Across multiple color spaces, it enables accurate measurement and expression of various density metrics, color difference formulas, and color indices. Equipped with advanced color management software, it connects to a computer for additional functionality.

YD5050 and YD5010 are self-developed China grating spectrodensitometers independently developed by 3nh. The Industrial Color-Densitometer instruments are stable, accurate and powerful.It is in a certain position in the field of portable spectrodensitometers.


Contact Our Specialists

Types of 3NH Spectrodensitometer Products

TS1060 Spectrodensitometer (Advanced Edition)
NEW

TS1050 Spectrodensitometer (Professional Edition)
NEW

TS1010 Spectrodensitometer (Standard Edition)
NEW

PS530 Spectrodensitometer
NEW

PS528 Spectrodensitometer
NEW

Spectrodensitometer YD5050 Plus

Spectrodensitometer YD5010 Plus

Spectrodensitometer YD5050

Spectrodensitometer YD5010

Core Features Of Our Spectroscopic Color-Densitometer Instrument

As a global leader of color measurement instruments, our Spectrodensitometers are futuristic and provide you with the best functions. Our Spectroscopic Color-Densitometer integrates precision spectroscopy and density measurement in one compact device, delivering accurate, repeatable color and density data for printing, packaging, and industrial color quality control.



45/0 geometric optical structure

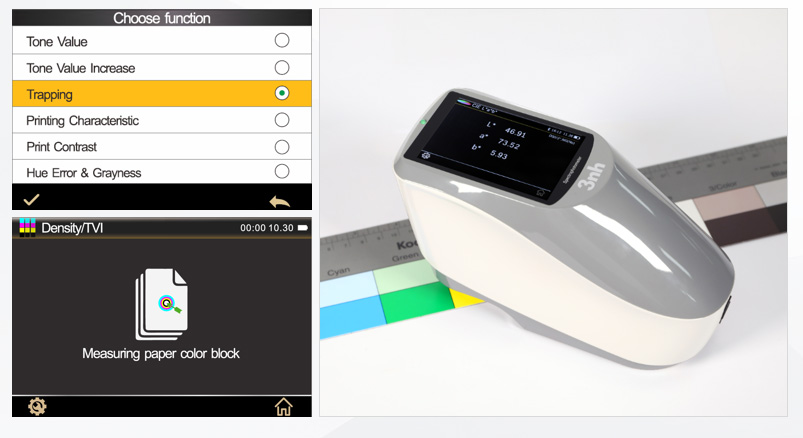

45/0 geometrical optics structure, comply with CIE, the testing conditions of MO,M1,M2,M3 stipulated by ISO 13655 standard, it can accurately measure various printing density , overprint rate and other printing parameters;



Excellent inter-station difference and repeatability


YD5050 density meter has excellent repetition and difference between stations to ensure the consistency of measurement data from multiple devices.

  • Repeatability: Density value: within 0.01D

  • Chroma value: within ΔE*ab 0.03

  • Difference between stations: within ΔE*ab 0.18

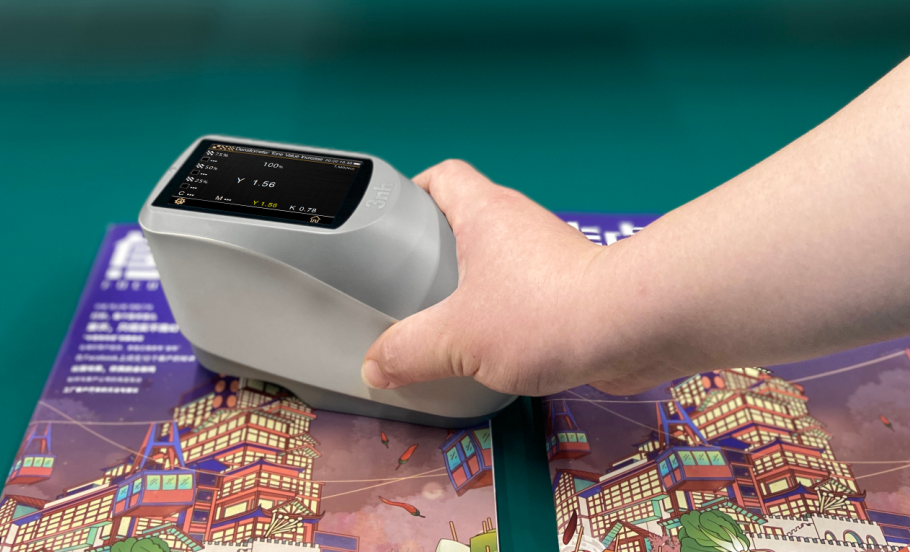

YD5050 density meter measurement

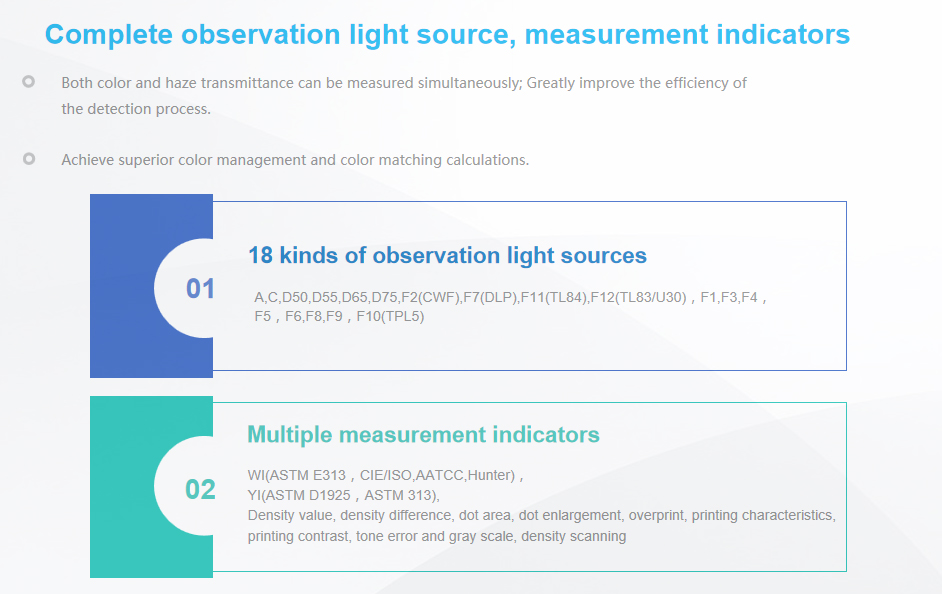

yd5050 Complete observation light source, measurement indicators

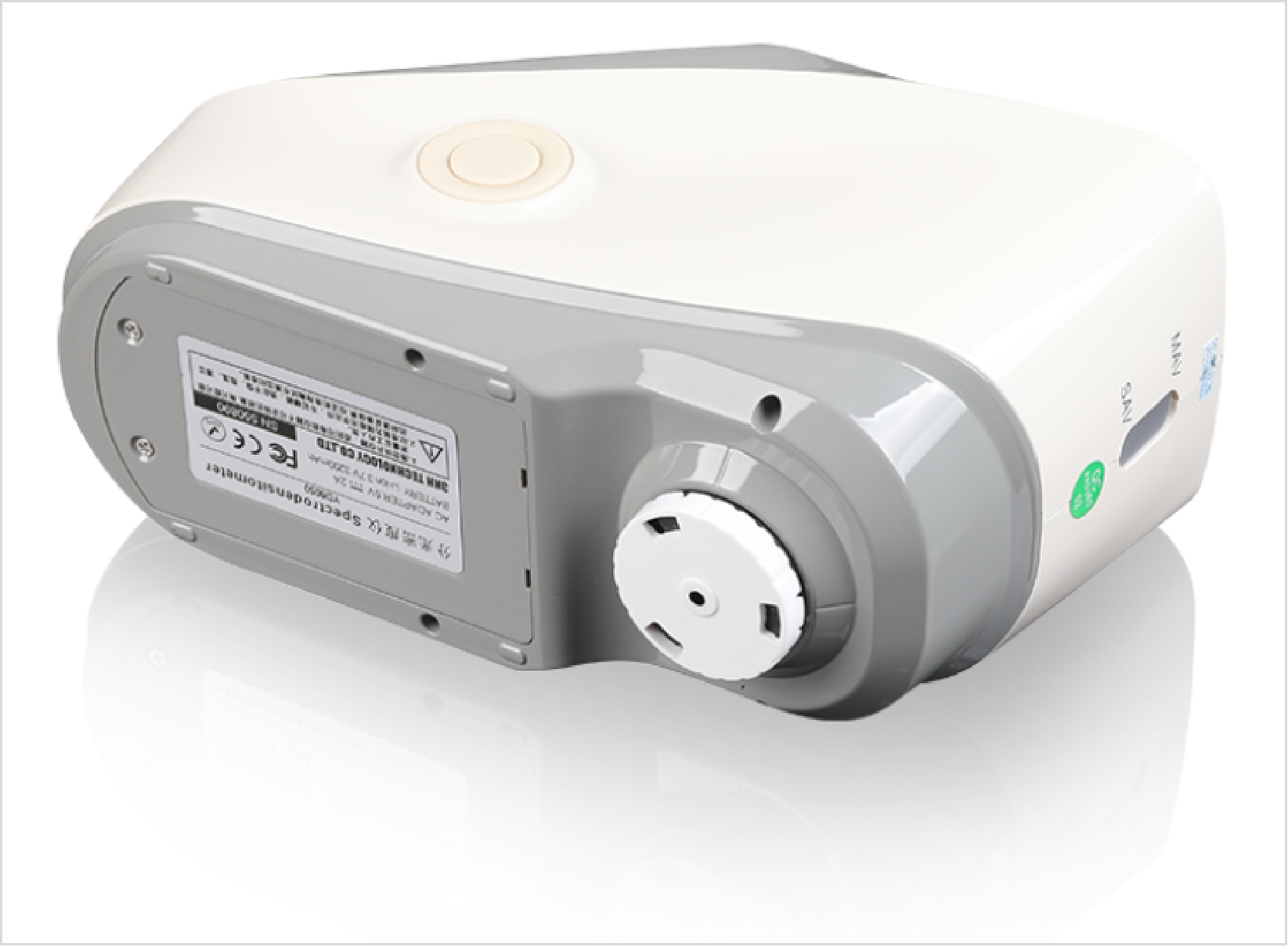

Single caliber arbitrary choice


Customized single diameter Φ2mm, Φ4mm, Φ8mm;

Adapt to more samples under test.

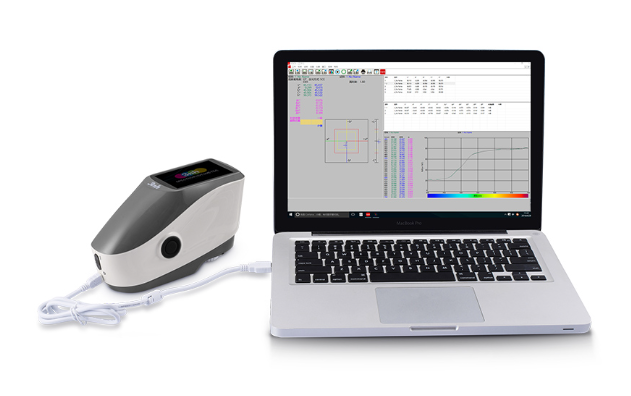

Easy to operate, faster and more accurate measurement

The instrument is equipped with high-end color management software, connected to the computer to use, can achieve:

1, can easily control the instrument terminal.

2. Digitize the user's color management and generate test reports.

3, provide a variety of color space measurement data.

4, convenient to achieve measurement data storage, management, quality control analysis

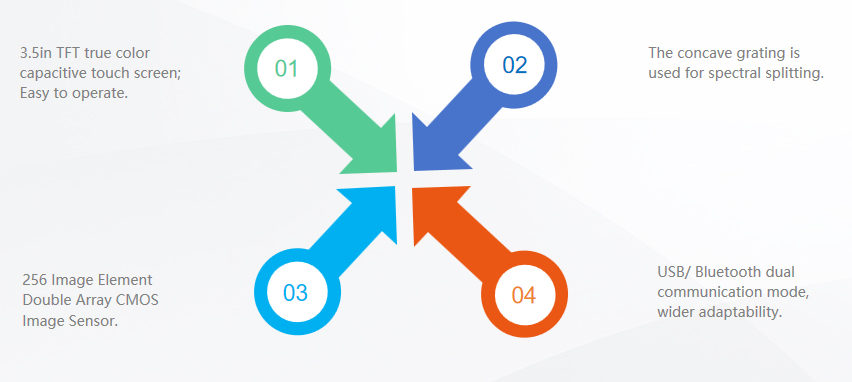

High hardware configuration


Instrument interface display

Using TFT true color display, the screen is clear and does not flash; Intuitive graphical interface, detailed operation tips, let you quickly get started.

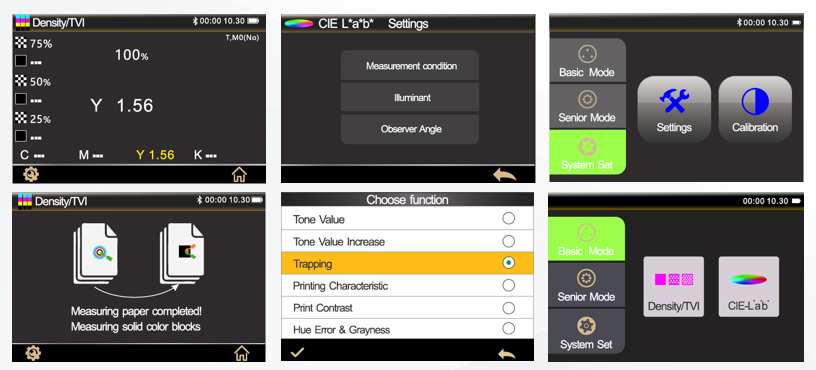

spectrophotometer operating interface

Lab-Grade Color-Density Analyzer

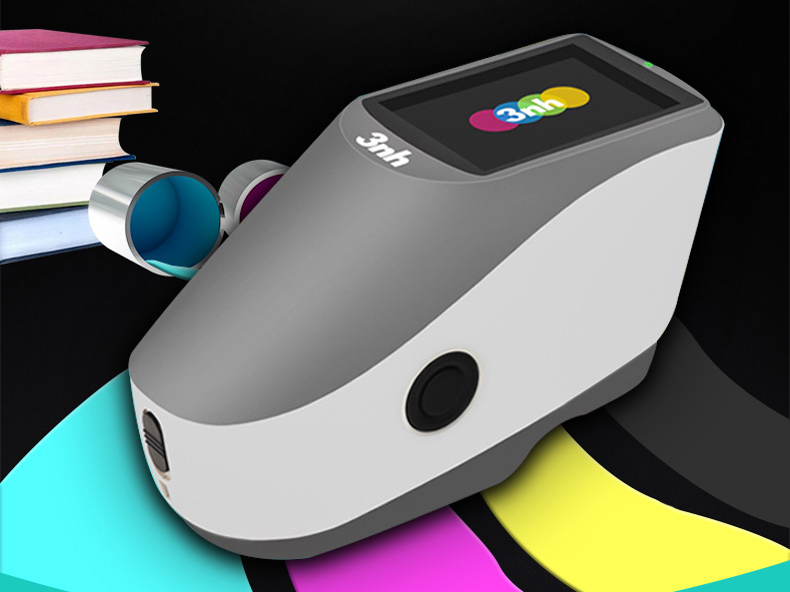

3NH Lab-Grade Color-Density Analyzer

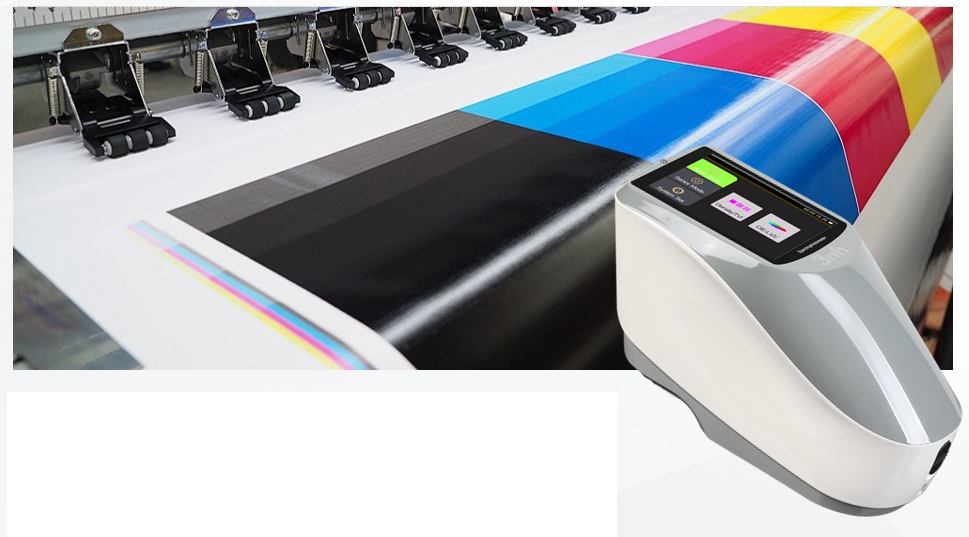

Lab-Grade Color-Density Analyzer for printing

The Lab-Grade Color-Density Analyzer integrates high-resolution spectral detection and density measurement modules, supporting customizable measurement modes and data export functions. It meets strict lab standards for repeatability and reproducibility, suitable for advanced color management and material characterization projects.

Printing Density Measurement

Density measurement is a common product quality control method in the printing industry. It is the fastest, simplest, and most effective instrumental measurement method for inspecting and controlling the quality of printed matter. A printing spectrodensitometer is a key instrument for printing quality control, whose core function is to quantify the color and density parameters of printed matter by measuring the light absorption characteristics of printing inks. Printing Density Measurement is an essential step in offset printing to ensure consistent color reproduction.

Spectrodensitometer Application industry

Widely used in ink printing, film processing, textile printing and dyeing, plastic electronics and other industries accurate color measurement and quality control.

3NH Color Densitometer APPLICATION IN ink printing, film processing, plastic and etc.

Buy your Spectrodensitometer Instruments now

Do you have a project requiring a Spectrodensitometer Instrument? Contact us today by filling out our contact form to receive personalized advice and a quick quote. Our team, with over 20 years of experience in Measurement instrument, is available to respond as quickly as possible.

Get in Touch Now


Our Valued Clients

FAQs About  Spectrodensitometer

 Color is measured using devices such as colorimeters, spectrophotometers, and spectroradiometers. Colorimeters are easier and good for simple color quality tests. Whereas spectrophotometers yield detailed spectral information. Hence, suitable for laboratories and industries.

Make sure the light sources are calibrated, keep extraneous light sources away, have the correct viewing angles, and handle the samples in a clean and uniform manner.


At most of time, we have Spectrophotometer stock in the factory. Generally it is 1-3 working days after the payment confirmed. After shipped, we will email you the tracking number. You can check the shipping status of your order on the website. If you are in urgent need, we can consider making special arrangement for you.

For pharmaceutical tablet color accuracy & compliance (USP/EP/ICH/FDA), these 3nh spectrophotometers deliver superior precision:

1. TS8560 Benchtop (Lab/R&D – Highest Precision)

  • d/8° integrating sphere, SCI/SCE dual mode

  • ΔE*ab ≤ 0.01 (repeatability), IIA ≤ 0.1

  • Small apertures (Φ3mm/Φ8mm) ideal for tablets

  • Auto positioning, temp/humidity compensation

  • 21 CFR Part 11 software for audit trails

  • Best for: R&D, formulation, strict QC, coated tablets3nh TS8560

2. TS8503 Benchtop (Mid-High Accuracy)

  • d/8°, dual CMOS sensor

  • ΔE*ab ≤ 0.018, IIA ≤ 0.24

  • Multi-aperture, camera view locating

  • Stable for batch-to-batch tablet consistency

3. ST70 Portable (Production/Field)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Handheld, fast, non-destructive

  • Best for: line checks, incoming materials, small labs

4. NS800 (Cost-Effective QC)

  • 45/0 geometry, ΔE*ab ≤ 0.04

  • Rugged, touchscreen, easy QC

  • Suitable for uniform, uncoated tablets

Short Recommendation

  • Top lab accuracy: TS8560

  • Best value benchtop: TS8503

  • Portable production: ST70

  • Economical QC: NS800

All meet pharmaceutical standards for tablet color uniformity, coating consistency, and stability testing.


For accurate results, install a clean and well temperature-regulated booth that is also sheltered from reflective surfaces and direct sunlight. Ambient light in the booth and the surrounding area from where the light is being viewed should not mix.


SCI&SCE are two method in the color measurement. SCI means Specular Component Include,SCE means Specular Component Exclude.

Under the method of SCE, only test diffuse refection and exclude specular reflection. In that way, the test result is similar to object color was observed by human eyes.

Under the method SCI, both the diffuse refection and specular reflection will be included. In that way, the value about the color is more objective. It will not effect by the environment condition.

When we choose the instrument, those elements should be taking into consideration.
