NR110 Precision Colorimeter

Affordable Precision NR110 Colourimeter Device

The NR110 Colorimeter is a compact, handheld color measurement device designed for simplicity and portability; NR110 microcomputer colorimeter is suitable for color detection and control in various occasions. It is an ideal choice for color management in garment factories, chemical factories, printing factories, automobile factories, hardware processing factories, mold factories, paint factories, etc.


Key Highlights

  • 8°/ d optical geometry

  • Chromaticity Values, Color Difference Values, Pass/Fail Result, Color Offset/Deviation Direction

  • CIE LAB,LCh,XYZ, Color Space

  • Φ8mmflat aperture, Φ8mm sharp aperture

  • 2.8-inch TFT screen for easy operation

  • Reliable repeatability (ΔEab ≤0.08) and inter-instrument agreement (ΔEab ≤0.8)

  • Large storage capacity,  Apprx. 20,000 data;

  • On-site inspections, providing cost-effective color measurement solutions for entry-level applications

NR110 Precision Colorimeter Instructions Operating Manual NR110 Precision Colorimeter PDF
This NR110 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Easy-to-Use Colorimeter Instruments for Precise and Reliable Color Quality Control

In a world where color consistency directly impacts brand reputation and product quality, the NR110 Precision Colorimeter emerges as a game-changing tool for businesses seeking reliable, cost-effective color measurement. The NR110 handheld colorimeter is certified by SCM metrology certification, CE certification, and TUV certification. It is proudly produced by 3nh, a brand enterprise with ISO9001 international quality management certification. Featuring a portable structure, it is compact and convenient, making color measurement simpler than ever. With an exquisite appearance patent, it adopts a dual aesthetic design combining tradition and trend. Backed by heavy investment in high-end molds, the product consistency is close to 100%, delivering exceptional cost performance.

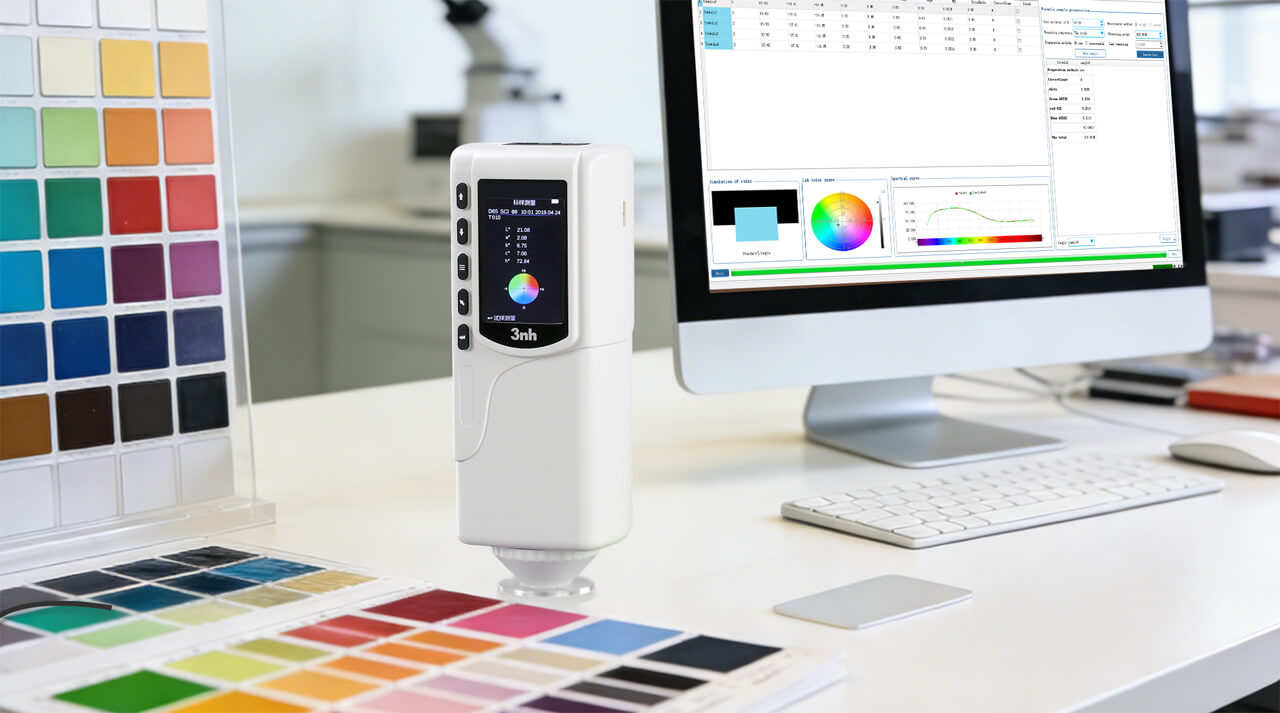

NR110 for color management solutions

Features of Portable Colorimeter 3nh NR110

Since 1998, from import to domestic, 3nh NR110 precision colorimeter is an iconic milestone in color test industry. The NR110 portable colorimeter is a high-precision, low-cost device quickly and easily evaluating the baking of all kinds of bakery products (breads, buns, biscuits and other food products) in order to check the baking process of the production line.

NR110 is a colorimeter that will give true and accurate Lab values when color matching, with the NR110 colorimeters, it is possible to monitor and control the color of cooked, fried, smoked, or processed foods or ingredients in different environments to ensure their consistent appearance. It is the ideal solution for multi-site businesses and restaurant chains seeking consistency and increased quality in the appearance of their products.

In addition to crust color, the NR110 analyzes color on all kinds of baked goods, such as yeast, flour, brown sugar, and the additive calcium propionate. According to CIE standard illuminant D65 and the 8° observer guarantee its repeatability and correct measurements.

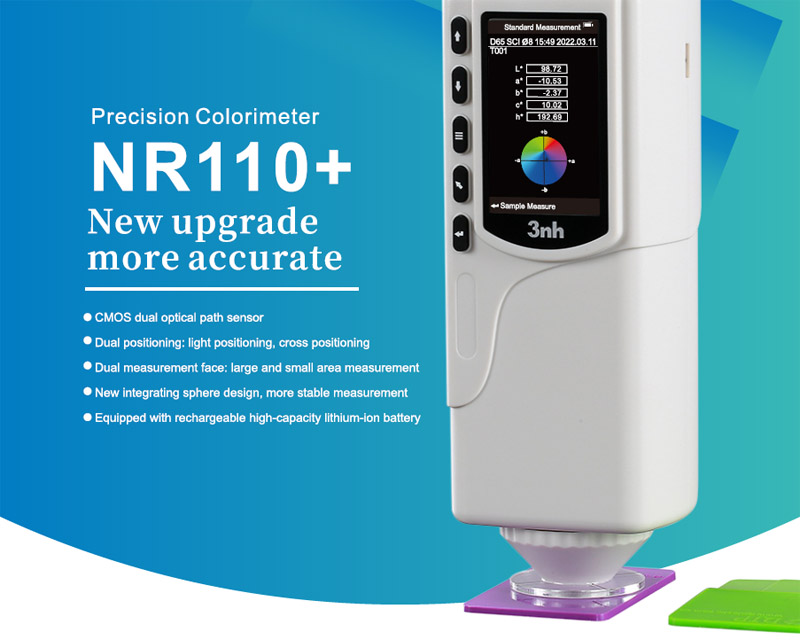

precision_colorimeter_nr110


Very easy to use and battery-operated, the NR110 displays results on its LCD screen in the form of a L*a*b* colorimetric coordinates.

New Functions

Double Locating: Illuminating locating and cross locating

Double Measurement End Face: Large area measurement and small area measurement

New Integrating Sphere Design: More stable measurement

Equipped with Rechargeable High-Capacity Li-ion Battery

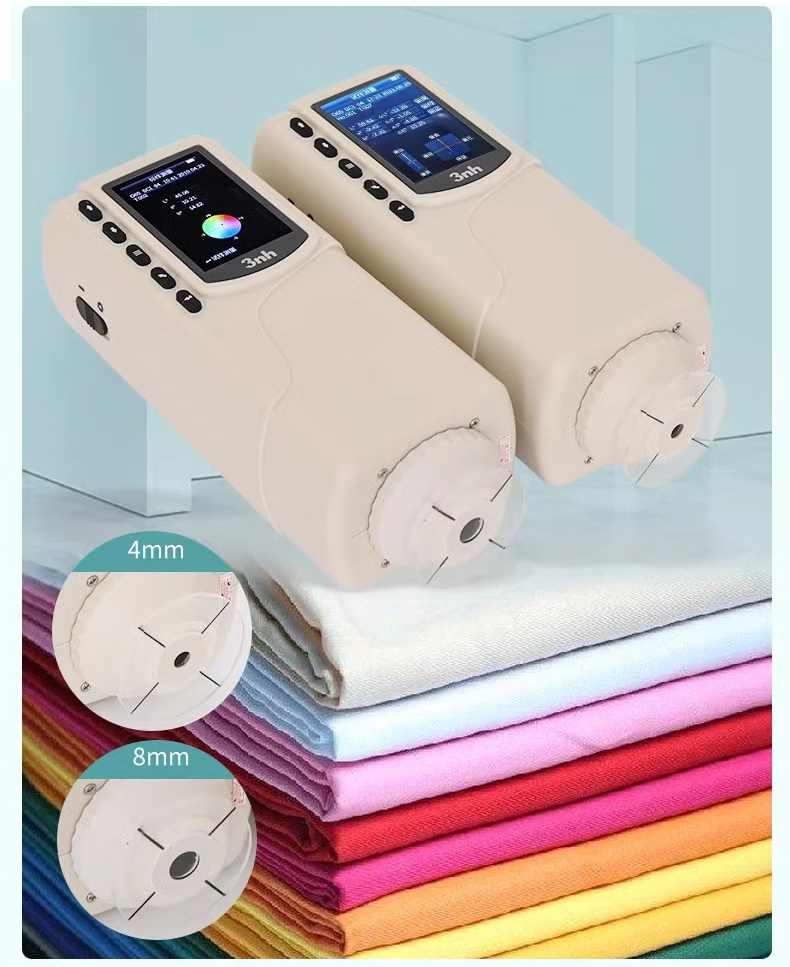

 high_perfomance_nr110_colorimeters

Product Advantages



a.  Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.

b.  Double Locating: Illuminating locating and precise cross locating.

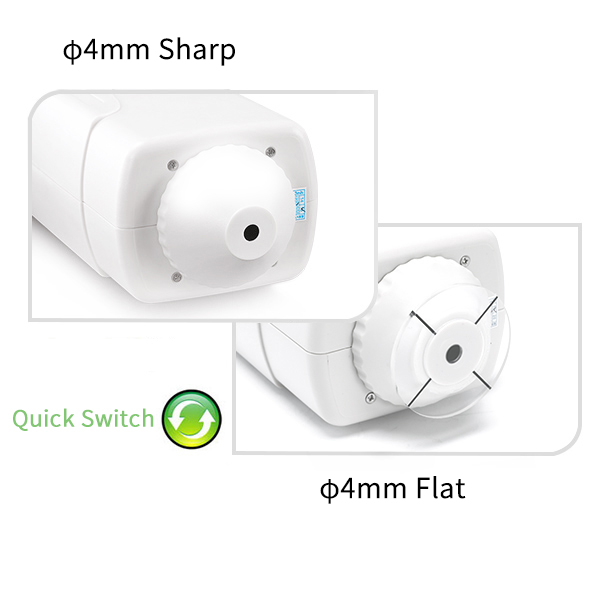

c.  Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.

d.  New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the highest measurement stability and precision.

e.  4mm Measuring Aperture.

f.   Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.

g.  Configure CQCS3 software. Connect PC computer to realize more functions.

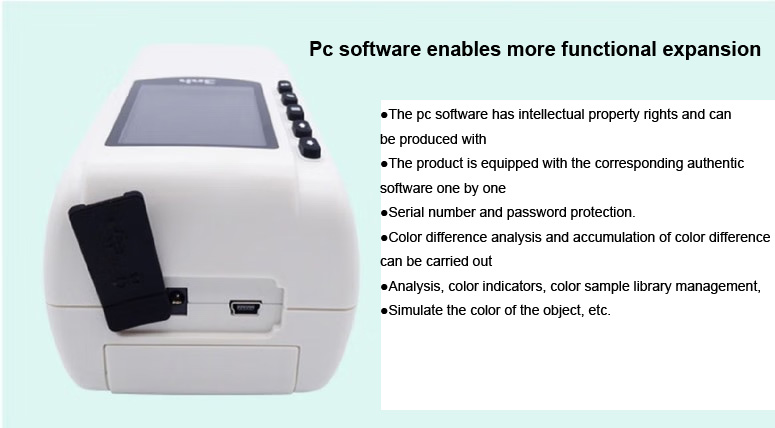

NR110_equipped_with_corresponding_authentic_software

h.  Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

i.   Hand-head structure: small and convenient; make the measurement easier.

j.   Exquisite appearance: adopts traditional and fashionable aesthetic designs.

k.  Spending huge sums on high-end mold. Product consistency approaches 100%.

l.   High cost performance: large output, good quality, cheap products.






Illuminating Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face. (for NR110)




NR110 colorimeter device was developed for precise, fast and reliable shade determination of product‘s surface color. Quickly measures LAB value of samples, universal values in the world of colorimetry, the measured shade is communicated in L*a*b* coordinates, very intuitive and easily interpretable by the user. It connects via Bluetooth® wireless technology or via USB to your device.

Accurate digital color meters for a wide range of applications:

nr110 widely application in plastics, printing,automobile,textile, medicine, paints

             Talk to Our Engineers Today


NR110- High-Quality Portable Computer-Connected Colorimeter

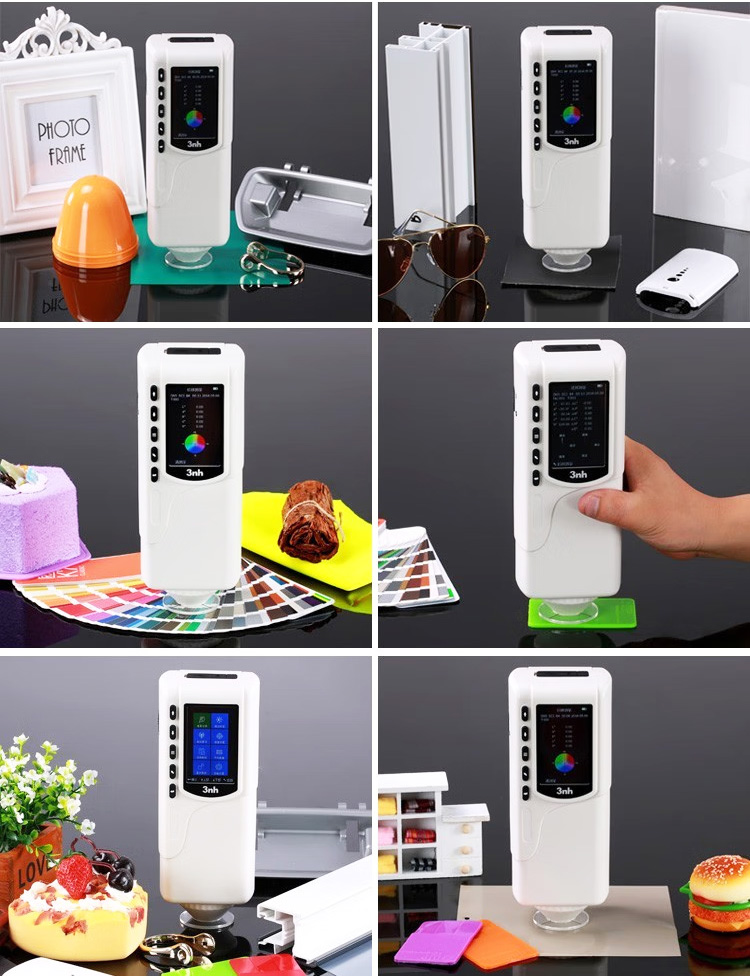

NR110_Application_Case


Why Choose the NR110 for Your Color Measurement Needs?

            ✅Reliable Data Storage & Export: Store up to 500 color data sets and transfer files via USB for easy reporting and analysis.

            ✅Durable & Long-Lasting: Built with rugged materials to withstand industrial environments, ensuring stable performance over time.

            ✅Wide Compatibility: Works seamlessly with common color management software, integrating into your existing quality control system.

Help enterprises improve product quality!

Equipped with outstanding measurement accuracy and stability, the NR110 helps enterprises strictly control the color quality of products, enhance product competitiveness, and win market recognition. Multifunctional and high-performance instruments are essential for every enterprise. The NR110 handheld colorimeter is your ideal choice for industrial color management.

Appearance structure and accessories

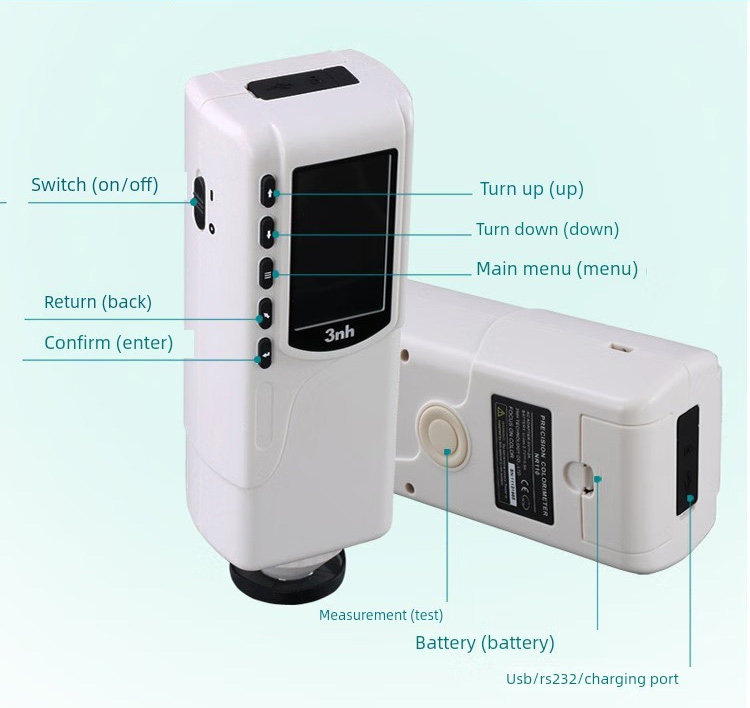

nr110 instrument Structure Diagram

Note

Before using this handheld colorimeter, first check that the power cable and sensor interface are properly connected, and verify that the function selector switch is set to portable measurement mode. Only after completing these checks can you turn on the instrument to perform measurements.

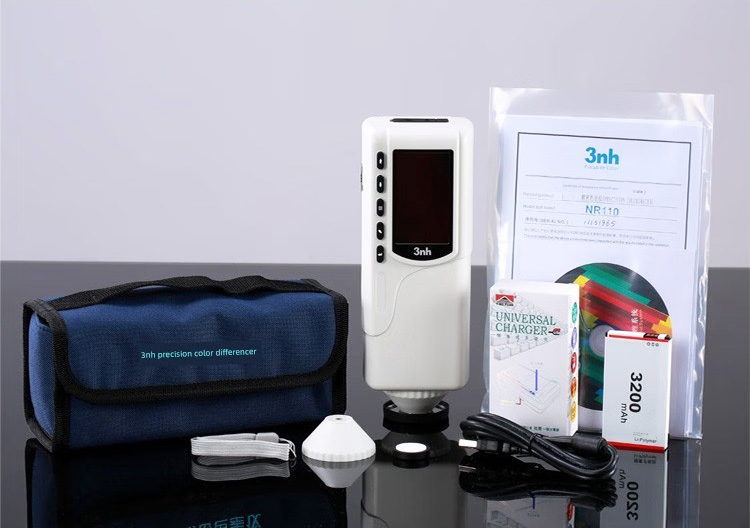

Nr110 product packagings



NR110 Colorimeter Demonstrating Videos


This video shows how to use the device for various applications such as measuring powders, liquids, textiles, and plastic parts.

Operation guides: how to start the instrument, calibration, measurement procedures for different sample types, how to switch between different color spaces and light sources, and how to use the double locating (camera and illumination) and aperture functions.

Contact Experts to Learn More About the NR110



Color Measurement Colorimeter Supplier &Manufacturer

As the global leader and innovator of colormeasurement instruments and technology, 3NH knows that our precision colorimeter machines have to be as accurate and reliable as they are easy touse. Our full-line of measurement instruments offer unprecedentedflexibility to measure. monitor, analyze, and report results-seamlessly.


NR110 Colourimeter Instrument Technical Specifications



Illuminating/Viewing Geometry  8/d
Measuring Aperture                      Φ4mm
DetectorSilicon photoelectric diode
LocatingIlluminating Locating/Cross Locating
Measurement End FaceLarge stable end-face and small concave-convex end-face
Color SpaceCIEL*a*b*C*h* CIEL*a*b* CIEXYZ
Color Difference Formula△E*ab △L*a*b* △E*C*h*
Light SourceD65
Light Source DeviceLED blue light excitation
Errors Between Each Equipment≤0.80ΔE*ab
Storage100pcs standards 20000pcs samples
RepeatabilityStandard deviation within ΔE*ab 0.08 Average of 30 measurements of standard white plate
LanguageEnglish/Chinese
Weight450g
Dimension205×67×80 mm
Power sourceRechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life5 years, more than 1.6 million measurements
Charging Time8 hours--100% electricity
PC SoftwareCQCS3 Software
Printer (optional)Miniature thermal printer



Instrument Software Installation

1. Mobile APP installation

The mobile colorimeter APP support Android operating system version 7.0 or higher and iPhone supports iOS 7.0 or higher version. It can be installed in the following ways:

● Scan the QR code on the  Spectrocolorimeter with a mobile browser or WeChat, follow the prompts to download and install.

● Click on the link 3NH APP to install the APP.

● Search for "3NH" (not case sensitive) in the APP Store/Google Play to install the application.

● If you need color matching software for color matching, you can download our Pecolor software blow


Color Matching Cloud For IPhone Download



Color Matching Cloud For Android Download




2. PC software installation

Connect to the computer via USB, you can use the PC software of the colorimeter. (PC software only supports Windows operating system)

● It can be installed in the following ways: Download "Product support | Colorimeter" to the local and run it directly after decompression.

SQCX English Version Download



(for TS Series,YL Series,ST Series,CR Series,YS Series,PS Series,NR+ Series,NH+ Series )



Portable Colorimeters NR Series Instruction manual




NR110 Colorimeter Calibration Certificate

Terms and conditions

Technical Support

Our China based Technical Support team is expertly trained on all our instruments along with all supported color software. This level of experience provides you an exceptional customer experience when assisting you with any technical issue you might be experiencing during setup or while operational.

  • Service is complimentary to all our existing clients.

  • The omnichannel communication format includes a customer portal, email, phone or chat.

Extended Warranty up to 5 years is available

In or out of warranty, it does not matter, 3nh customers receive support throughout the lifecycle of their instruments.

Shipping & Delivery

In stock – delivery within 1-2 Days

Backordered – delivery within 3-6 Days

Customized colorimeters (Color Difference Formula, Whiteness, Lightness， Light Source and etc) – delivery within 10-15 Days


Need Help? Contact Our Solutions Specialist



Our Valued Clients

  • customer cipla
  • TUPPERWARE
  • customer bridgestone
  • customer cello
  • customer pidilite
  • customer cadbury
  • customer jaquar
  • customer amway

FAQs About NR110 Colorimeter

 Color is measured using devices such as colorimeters, spectrophotometers, and spectroradiometers. Colorimeters are easier and good for simple color quality tests. Whereas spectrophotometers yield detailed spectral information. Hence, suitable for laboratories and industries.

High Measurement Accuracy and Stability: Low ΔE fluctuation (e.g., NH300: ΔE < 0.07; NR10QC: ΔE ≤ 0.03 short-term repeatability); Reliable sensors (CMOS dual-beam/silicon photodiode) and long-lasting light sources (1.6M–3M measurements over 5 years).

User-friendly Design and Convenient Operation: Intuitive interfaces (e.g., NH300’s “fool-proof” operation), auto-calibration, and ergonomic grips for extended use; Versatile positioning (light/cross alignment) for precise measurements.

Robust Design: Our colorimter instruments are designed to withstand rigorous use, providing long-term reliability. Rechargeable lithium batteries enable 5,000–6,000 measurements per charge (e.g., NH300/TS7030), ensuring cost-effective durability.

PC Software Support for Functionality Expansion: PC software (e.g., CQCS3) supports color difference analysis, chromaticity indexing, and sample library management.

Global customer support: Our global presence across regions ensures you get the service and maintenance support you need to keep your instrument at peak performance.

Multiple Measurement Apertures and Application Scenarios: Multiple measurement apertures, different models have different measurement apertures and some models offer multiple optional apertures. Applicable to plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics, automotive, food, medicine and other industries for color quality control and color difference detection.


Because color perception depends on the following factors:

Light source - For example, incandescent lamps emit orange light, while fluorescent lamps emit cool white light. Therefore, placing an object near different light sources will result in different perceived colors.

Observed object - Different types of objects affect color perception differently. Examples include opaque objects, translucent objects, and transparent objects.

Observer's position - Each observer will describe colors differently based on the position of their eyes.

Different backgrounds - An object's color will appear duller against a light-colored background than against a dark-colored background. Different directions of light reflection from the object - Light reflected from different directions creates different color perceptions. This is particularly noticeable with metallic objects.

Different directions of light reflection from the object - Light reflected from different directions creates different color perceptions. This is particularly noticeable with metallic objects.

The photoelectric integral color‑measuring instrument is what we commonly refer to as a photoelectric colorimeter. It obtains color tristimulus values through one‑shot integral measurement, featuring fast measurement speed and low cost, yet its absolute accuracy is inferior to that of a spectrophotometer. It works well for quick color‑difference comparison. For sophisticated color analysis or color formulation, a spectrophotometer is recommended instead.

How it converts color into digital values

At its core, this type of instrument simulates human color vision. Filters work together with detectors to convert optical signals into electrical signals and then calculate numerical values.

  1. Light strikes the sample, and reflected light enters the instrument.

  2. Filters split the light into three channels: red, green and blue, corresponding to three photodetectors respectively.

  3. Detectors measure the light intensity of each channel. The instrument directly computes tristimulus values X, Y, Z as well as chromaticity coordinates.

  4. The matching performance of optical filters is critical. Better compliance with the Luther condition delivers higher measurement accuracy.

Differences from spectrophotometers

Both instruments measure color, yet they serve quite different application scenarios.

Photoelectric colorimeter: Simple structure, compact size and easy operation with fast measurement speed. It can only test color difference instead of spectrum, and its absolute accuracy is limited, with chromaticity‑coordinate error around ±0.03.

Spectrophotometer: Light is dispersed and measured wavelength‑by‑wavelength. It provides high accuracy (chromaticity‑coordinate error up to ±0.001‑±0.003) and can acquire spectral reflectance curves. However, it comes with higher cost, complicated structure and relatively slower measurement speed.

Suitable application scenarios

Photoelectric colorimeters are preferred for routine production inspection, quick comparison and cost‑sensitive projects.

  • Textile printing & dyeing: Rapid color matching and color‑difference comparison

  • Plastics, coatings and printing: Spot‑checking color consistency on production lines

  • Field‑testing scenarios: Handheld models support on‑site measurement

  • Budget‑limited projects: Photoelectric colorimeters are cost‑effective with sufficient practical functions


Colorimeter vs Spectrophotometer for Textile QC

For textile quality control, a spectrophotometer is always the better choice instead of a basic colorimeter.

Key Reasons

  1. Spectrophotometer captures full spectral data, handles dyed fabric, printed textiles, yarn, woven and knitted materials with complex color and texture.

  2. Supports SCI/SCE, metamerism test, fastness comparison and batch color consistency inspection.

  3. Higher accuracy and better inter-instrument agreement, perfect for factory mass production and customer color approval.

  4. Basic colorimeters only show simple color difference data, easily affected by fabric texture, rough surface and lighting, with poor stability for textiles.

3nh Recommended Models

  • TS7700 / TS8560: High-precision, ideal for textile lab QC, color matching and raw material incoming inspection.

  • NR60CP / NS800: Cost-effective option for daily production line routine color checking.
