NR145 Precision Colorimeter

Lightweight Handheld Sphere Colorimeter NR145

The NR145 Colorimeter is a compact, handheld color measurement device designed for simplicity and portability; NR145 microcomputer colorimeter is suitable for color detection and control in various occasions. It is an ideal choice for color management in garment factories, chemical factories, printing factories, automobile factories, hardware processing factories, mold factories, paint factories, etc.


Key Highlights

  • 45°/ 0° optical geometry

  • Accurate spectra &Lab data , for color matching & delivery;

  • CIE LAB,LCh, XYZ;

  • Φ8mm flat aperture;

  • 2.8-inch TFT screen for easy operation

  • Reliable repeatability (ΔEab ≤0.08) and inter-instrument agreement (ΔEab ≤0.4)

  • Large storage capacity,  Apprx. 20,000 data;

  • On-site inspections, providing cost-effective color measurement solutions for entry-level applications

NR145 Precision Colorimeter Instructions Operating Manual NR145 Precision Colorimeter PDF
This NR145 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)
Functional Features

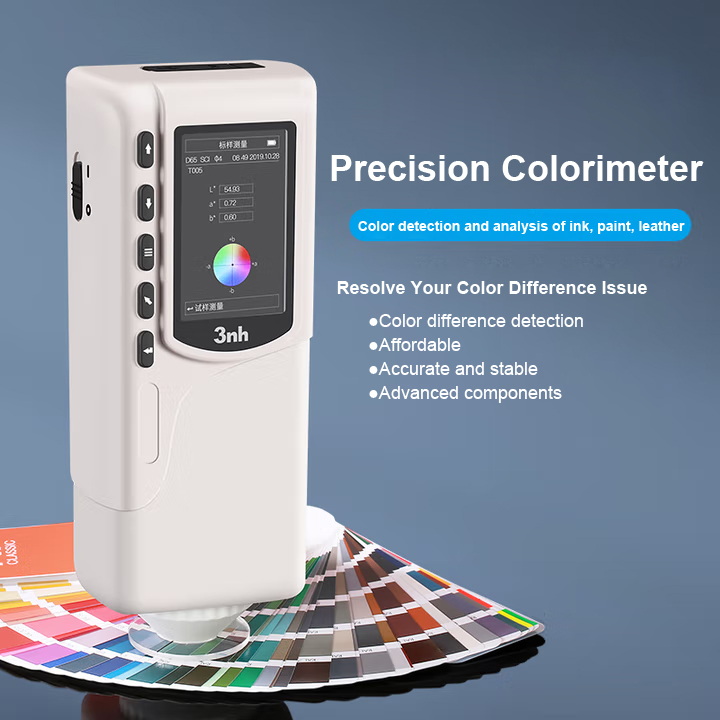

nr145 precision colorimeter color detection and analysis

NR145 Precision Colorimeter



3nh R&D team concentrates on customer needs and develops series of high-cost and high-quality products. NR145 is a precision colorimeter with 45°/0° viewing angle after NH310, NH300, NR200, NR110 and NR100 colorimeter. NR145 colorimeter has strong functions which applied a number of differential innovative technologies. It can measure accurately in 45° illumination /0° receiving under the SCE mode.

China NR145 Photoelectric Colorimeter wholesale - Select 2025 high quality Photoelectric NR145 Colorimeter products in best price



NR145 Precision Colorimeter




Product Advantages



1. Built-in white plate parameters. No need to calibrate each time which can perform measurement quickly.
2. Double Locating: Illuminating locating and precise cross locating.
3. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
4. New 45°/0° Optical Path Design: Significantly improve the measurement stability and precision.
5. 8mm Measuring Aperture.
6. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
7. Configure CQCS3 software. Connect PC computer to realize more functions.
8. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
9. Hand-head structure: small and convenient; make the measurement easier.
10.  Exquisite appearance: adopts traditional and fashionable aesthetic designs.



NR145 Precision Colorimeter



Illumination Locating, Cross Locating, Large Stable End Face, Small Concave-Convex End Face



NR145 Colorimeter Applications


As a portable colorimeter with 45°/0° optical structurelaunched by 3nh, the NR145 features an 8mm small aperture, dual precision positioning and high stability, and is widely used in color detection scenarios across various industries. Its core applications are as follows:

1. Plastics & Electronics Industry

  • Suitable for small products such as plastic pellets, casings and buttons, accurately measuring color difference, yellowness index and whiteness index.

  • Applied in color consistency control of electronic accessories to ensure uniform appearance quality.

2. Coatings, Inks & Chemical Industry

  • Conduct on-site rapid color difference judgment for automotive coatings, industrial coatings and printing inks.

  • Support color data collection for powder and liquid coatings, and realize color formula traceability with CQCS3 software.

3. Automotive Manufacturing & Parts Industry

  • Used for color difference detection of automobile body paint, interior parts and plastic accessories.

  • Vertical design is suitable for measuring curved and small-area parts, meeting the whole-process quality control of vehicle coating.

4. Textile Dyeing & Leather Industry

  • Measure the color of cloth, yarn, leather and other textured samples to precisely control dyeing and matching effects.

  • Adapt to color consistency verification of mass production in clothing and home textiles.

5. Food, Pharmaceutical & Cosmetics Industry

  • Food: Detect the color of beverages, candies, sauces and other foods to monitor quality stability.

  • Pharmaceuticals/Cosmetics: Accurately measure color deviation of tablets, capsules and cosmetic powders to ensure compliance.

6. Building Materials & Printing Industry

  • Building materials: Suitable for color difference detection of hard materials such as glass, ceramic tiles and plates.

  • Printing: Measure color reproduction of packaging paper products and trademark labels, supporting multi-batch color comparison.

7. Scientific Research & Laboratory Scenarios

  • Meet the color measurement experiment needs of universities and research institutions, supporting output of various color space data.

  • Connect to a computer for data archiving and report generation, facilitating professional color analysis.

    nr145_applications


NR145 Colorimeter Technical Specifications



3nh
NR145
Illuminating/Viewing Geometry
45°/0°
Measuring Aperture
Φ8mm
Measurement End-face
Large stable end face and small concave-convex end face
Detector
Silicon photoelectric diode
Locating
Illuminating Locating/Cross Locating
Color Space
CIEL*a*b*C*h* CIEL*a*b*
CIEXYZ
Color Difference Formula
△E*ab △L*a*b* △E*C*h*
Light Source
D65
Light Source Device
LED blue light excitation
Errors Between Each Equipment
≤0.80ΔE*ab
Storage
100pcs standards 20000pcs samples
Repeatability
Standard deviation within ΔE*ab 0.08
Average of 30 measurements of standard white plate
Weight
500g
Dimension
205×67×80 mm
Power source
Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life
5 years, more than 1.6 million measurements
Charging Time
The first charging time is 8 hours--100% electricity
PC Software
CQCS3 Software
Printer (optional)
Miniature thermal printer




Our Valued Clients

  • SRIVASAVI
  • customer cello
  • customer cipla
  • customer pg
  • TUPPERWARE
  • customer amway
  • customer cadbury
  • CROMPTON

FAQs About NR145 Colorimeter

ΔE*ab ≤ 0.1: For general quality control in textiles, printing, plastics, etc.Recommended models: NH310, NR60CP, NR110, ColorReader series

ΔE*ab ≤ 0.03: For medium-precision applications such as automotive interiors and electronic housings.Recommended models: CR8, CR9, PS2080, PS2070 series

ΔE*ab ≤ 0.02: For high-precision applications such as coatings and dyeing.Recommended models: ST7700, ST70, ST60, PS2080, YS6060, MS30 series

ΔE*ab ≤ 0.01: For laboratory-grade precision measurement.Recommended models: TS8520, TS8560, TS8500, TS4020 series


High Measurement Accuracy and Stability: Low ΔE fluctuation (e.g., NH300: ΔE < 0.07; NR10QC: ΔE ≤ 0.03 short-term repeatability); Reliable sensors (CMOS dual-beam/silicon photodiode) and long-lasting light sources (1.6M–3M measurements over 5 years).

User-friendly Design and Convenient Operation: Intuitive interfaces (e.g., NH300’s “fool-proof” operation), auto-calibration, and ergonomic grips for extended use; Versatile positioning (light/cross alignment) for precise measurements.

Robust Design: Our colorimter instruments are designed to withstand rigorous use, providing long-term reliability. Rechargeable lithium batteries enable 5,000–6,000 measurements per charge (e.g., NH300/TS7030), ensuring cost-effective durability.

PC Software Support for Functionality Expansion: PC software (e.g., CQCS3) supports color difference analysis, chromaticity indexing, and sample library management.

Global customer support: Our global presence across regions ensures you get the service and maintenance support you need to keep your instrument at peak performance.

Multiple Measurement Apertures and Application Scenarios: Multiple measurement apertures, different models have different measurement apertures and some models offer multiple optional apertures. Applicable to plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics, automotive, food, medicine and other industries for color quality control and color difference detection.


Colors look different under various lights mainly because of metamerism—a phenomenon where two colors that match under one light source fail to match under another, caused by differences in the spectral composition of light.

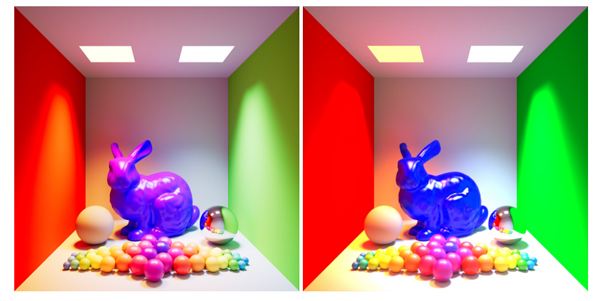

object_Colors_look_different_under_various_lights1

Different lighting varies the color perception of objects. Warm light, like that from incandescent bulbs, tends to make colors more yellow, while daylight presents a bluish tint. Our color vision system plays a compensating role using a mechanism called color constancy.

Every light source emits light with a unique "spectral fingerprint" (i.e., the range and intensity of wavelengths it contains). This directly affects how an object’s surface reflects light and how our eyes perceive its color.

The "accuracy" of a colorimeter refers to how closely its measurement results align with the true values, primarily influenced by systematic errors and random errors, how closely its measured color data (e.g., Lab values, density) aligns with the true color properties of a sample or certified standard. Specifically, it includes key indicators such as color coordinate accuracy, luminance accuracy, and data repeatability.

It reflects the instrument’s ability to minimize deviations caused by component variations, environmental factors, or calibration drift—ensuring results reliably represent the actual color, which is critical for quality control and brand consistency in industries like printing, food, textiles, paint and coatings.

Since part of the light will pass through the light-transmitting materials, the colorimeter is not suitable for color measurement of such kinds of materials; however, when place a pure color material with uniform texture under the light-transmitting material, we can measure the color difference between the standard and the sample.
