Multi-angle Spectrophotometer Instruments

3nh Multi-angle spectrophotometer is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. Lightweight, Durable, Accurate—Your On-the-Go Color Expert

Redefine Color Measurement for Complex Surfaces

The Ultimate Tool for True Color Analysis

The 3nh Multiangle Spectrophotometer features up to 12 measurement angles, with a maximum repeatability of ΔEab < 0.04 and color repeatability of ΔEab < 0.02. It is primarily designed for measuring the sparkle, flop, and granularity effects on object surfaces,It can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products.

It can not only measure multi-angle color difference, but also measure and characterize special finishes through multiple measuring angles. Even in the curved surface, it also has high measuring accuracy and stability.

From Car Paint to Cosmetic Pearls: Master Every Shade with Multi-Angle Spectrophotometry

Contact Our Specialists

Types of 3NH Multi-angle spectrophotometer Products

MS3012 Multi-angle spectrophotometer

8 Angle Color Spectrophotometer MS3008

MS3006 Multi-angle spectrophotometer

New KS Series Multi-angle Spectrophotometer
NEW

Multi-angle spectrophotometer MS3005

Multi-angle spectrophotometer MS3003

Professional Multi-Angle Spectrophotometer

The Future of Special-Effect Color Measurement: Multi-Angle Spectrophotometers Lead the Way

4th Generation Grating Spectrophotometer

A powerful and portable instrument for color measurement, management, transmission, and report printing.




Masters Color at Every Angle - Multi-angle measurement

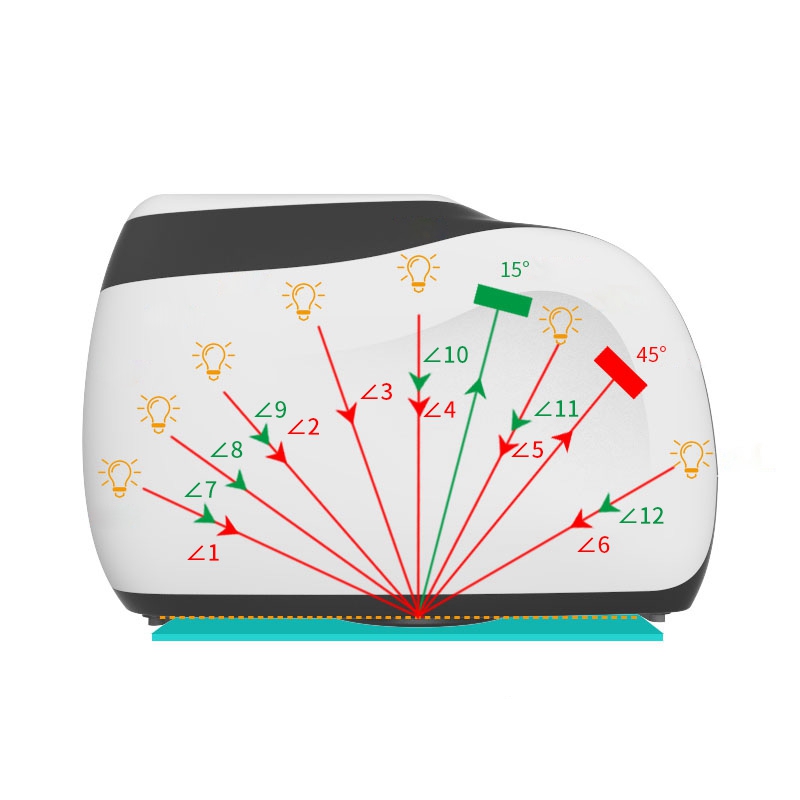

Adopt 7 illumination sources, 2 receivers to measure 12 measurement angles at the same time

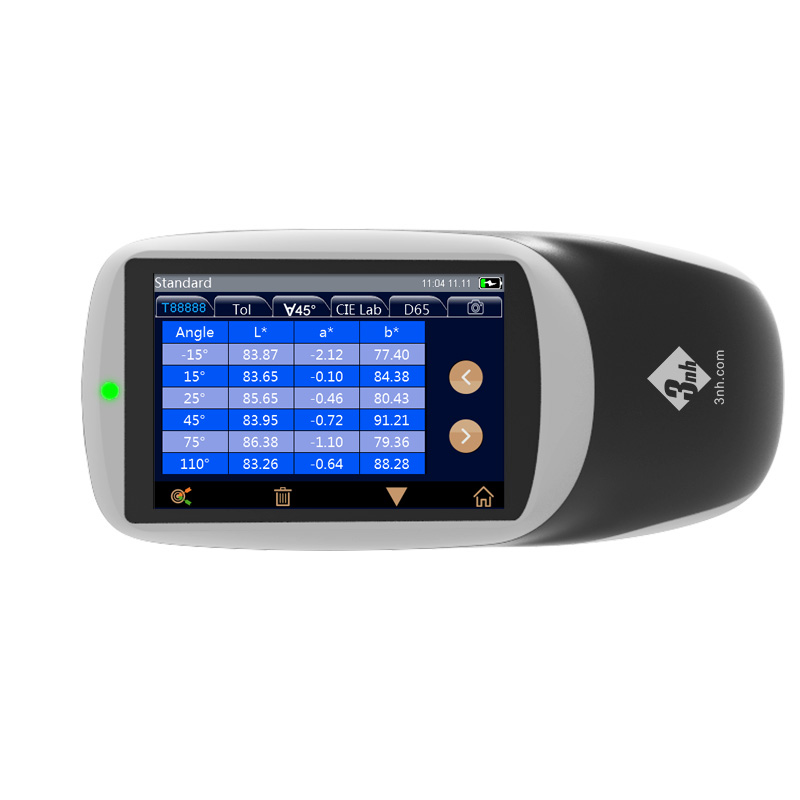

all Angle measurement results display large screen

More intuitive display

Touch screen can display all Angle measurement results, more intuitive view of the comprehensive data.

Threenh Multi-Angle Spectro Colorimeter Advantages

  • High - end Hardware Configuration: Dual - array image sensors; Bluetooth transmission; Concave grating for light dispersion.

  • Stable Measurement: 400 - 700nm blue - enhanced LED, with the standard deviation controlled within 0.08%.

  • Color Transfer: Measures the sample's reflection spectrum, providing accurate Lab data, applicable for color matching and color transfer.

  • Measurement Accuracy: Temperature monitoring and compensation. With a built - in temperature sensor, it monitors and compensates for the test environment to ensure accurate measurement results.

  • User-Centric Design: Its compact, lightweight design (1.2kg) also makes it ideal for both lab-based testing and on-site inspections (e.g., factory production lines, supplier audits).

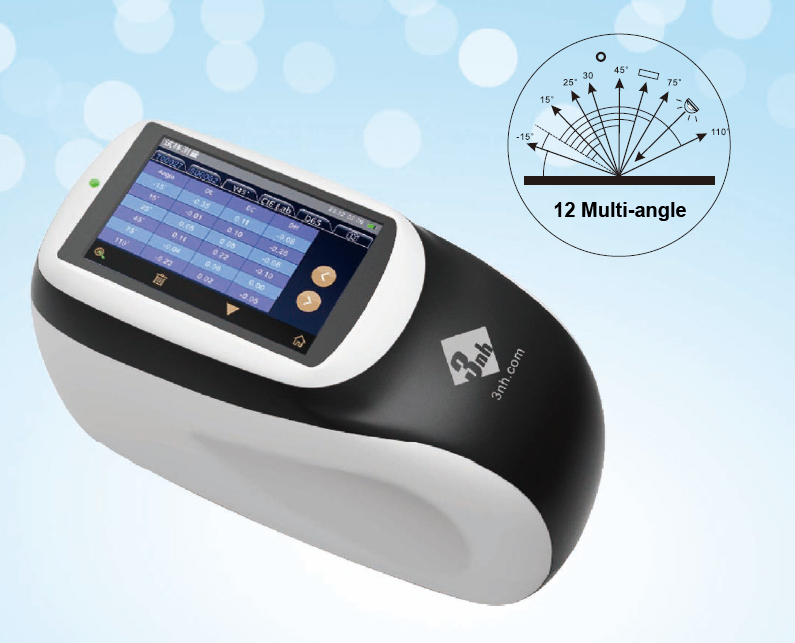

12 multi-angle color measurement 3nh


Threenh Multi-Angle Color & Effect Measurement Spectrophotometer Widely Application

Traditional colorimeters often miss subtle color shifts visible at different viewing angles, leading to inconsistent products, costly reworks, and disappointed customers. Our Multi-Angle Spectrophotometer solves this challenge by capturing color data from multiple angles, ensuring your products look perfect, no matter how they’re viewed.

Multi-Angle spectrophotometer for metallic, pearlescent & Iridescent materials, It provides accurate and consistent color measurement for metallic, pearlescent, and other complex special - effect color products. From automotive paints to cosmetics—this spectrophotometer instruments masters color at every angle.

  • Solid surfaces (metals, plastics, ceramics)

  • Coatings & inks (automotive, industrial, packaging)

  • Textiles & fabrics (apparel, home textiles)

  • Cosmetics (lipsticks, nail polishes, powders)


Automotive Surfaces


Automotive Interiors


Plastic Products


Printing and Dyeing Products

Discover the Multi-Angle Colorimeter for Automotive Color Matching&Measurement

Master Automotive Color Matching - Multi-angle Spectrophotometric Technology Measures the Texture, Gloss, and Sparkle of Automobiles. These devices are important in OEM manufacturing and body shop refinishing as well as quality control processes where precision and repeatability aspects are vital.

Request for quotation Spectrophotometers with Multi-Angle Measurements

Would you like a quote or additional technical details regarding our  Spectrophotometers with multi-angular measurements ? To do so, you will find our quick contact form below. We thank you for detailing your request in the "comments" field so that we can best respond to you. All our technical and sales teams are at your disposal to respond to you as quickly as possible

Connect With Our Color Expert!

Our Valued Clients

FAQs About  Multi-angle spectrophotometer

Samples should be cleaned, dried, and scratched-free to obtain consistent haze measurements.


In industrial production and quality control, color consistency is one of the core elements determining product quality. Whether it is the metallic paint for automobile coating, the dyeing effect of textile fabrics, or the ink matching in packaging and printing, subtle color deviations may lead to cost waste or damage to brand image.

The LAB color space defines colors with a three-dimensional model:

  1. Lightness (L): It indicates the lightness or darkness of a color, ranging from 0 (pure black) to 100 (pure white).

  2. Hue and Saturation (a and b):

    • The a-axis represents the red-green tendency, with positive values leaning towards red and negative values leaning towards green;

    • The b-axis represents the yellow-blue tendency, with positive values leaning towards yellow and negative values leaning towards blue.

It is a globally recognized standard and supported by most modern color measurement equipment. Color is quantitatively analyzed by measuring Lab values with instruments.


A colorimeter is sufficient for basic, routine color checks, while a spectrophotometer is needed for precise, comprehensive color analysis—here’s the clear breakdown:

When a Colorimeter is Sufficient

  1. Simple color matching needs: Ideal for checking if a sample matches a predefined standard (e.g., basic paint batches, plastic parts with solid colors).

  2. Consistent lighting conditions: Works well when measurements are done under fixed, standard light sources (no need to account for varied light effects).

  3. Cost-sensitive, high-volume tasks: Perfect for production lines requiring fast, low-cost color checks without advanced data analysis.

When to Use a Spectrophotometer

  1. Precise color quantification: Necessary for measuring Lab values (lightness, red-green, yellow-blue axes) or detecting subtle color deviations (critical for automotive coatings, high-end textiles).

  2. Complex color analysis: Required for metallic/pearlescent finishes, transparent materials, or samples with gloss/texture variations.

  3. Compliance and documentation: Essential when precise color data (spectral curves) is needed for quality audits, regulatory compliance, or brand color standardization.


To answer this question, you first need to clarify your specific needs:

  • Is it for simple color quality control (QC)?

  • To coordinate with supply chain color management?

  • To monitor on-line color stability?

  • Do you require computer color matching or production color correction?

  • What is your budget?

  • Systematic supervision and evaluation of color performance in dyed products?

If you aren’t fully clear about your requirements at the initial stage, our color management engineers are ready to communicate with you. We will recommend solutions tailored to your needs. When conditions permit, we can provide prototype demonstrations and trial testing to ensure the instrument meets your practical application requirements.

If there is uneven lighting, color shifts, and the light is not as bright as it was before, your lamps might have to be replaced. Recent light boxes used with Pantone, as well as Datacolor LightBooths, have usage timers that tell how long before a lamp needs to be replaced.


In a Pantone light box, the tubes last around 2000 to 3000 hours, after which the brightness and color should be assessed for replacement.

Further Multi-angle spectrophotometer Applications and Solutions

Glass, Film Transparent and Semi Transparent Materials Measurement
Overview of Printing Color Measurement Instruments
Industrial Paint and Coating Color Detection
Measure Color Differences of Foods
