Spectrodensitometer YD5050

Ink & Pigment Optimize Formulations with Precise Density Data

Lab-Grade Accuracy, Industrial-Strength Reliability, 3nh YD5050 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control.


Key Highlights

  • 45/0 geometrical optics structure, comply with CIE

  • Reflectance spectrum, CMYK density and Lab

  • 3.5-inch TFT true-color screen, capacitive touch screen, concave grating

  • Ergonomic structure design

  • Φ2/4/8mm Optional apertures

  • Pinting plants process control and quality control

Spectrodensitometer YD5050 Instructions Operating Manual Spectrodensitometer YD5050 PDF
This YD5050 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3nh launched new model YD5050 Grating Spectrophotometer Densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to standard  ISO 5-4,CIE No.15. It is suitable for using in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing.

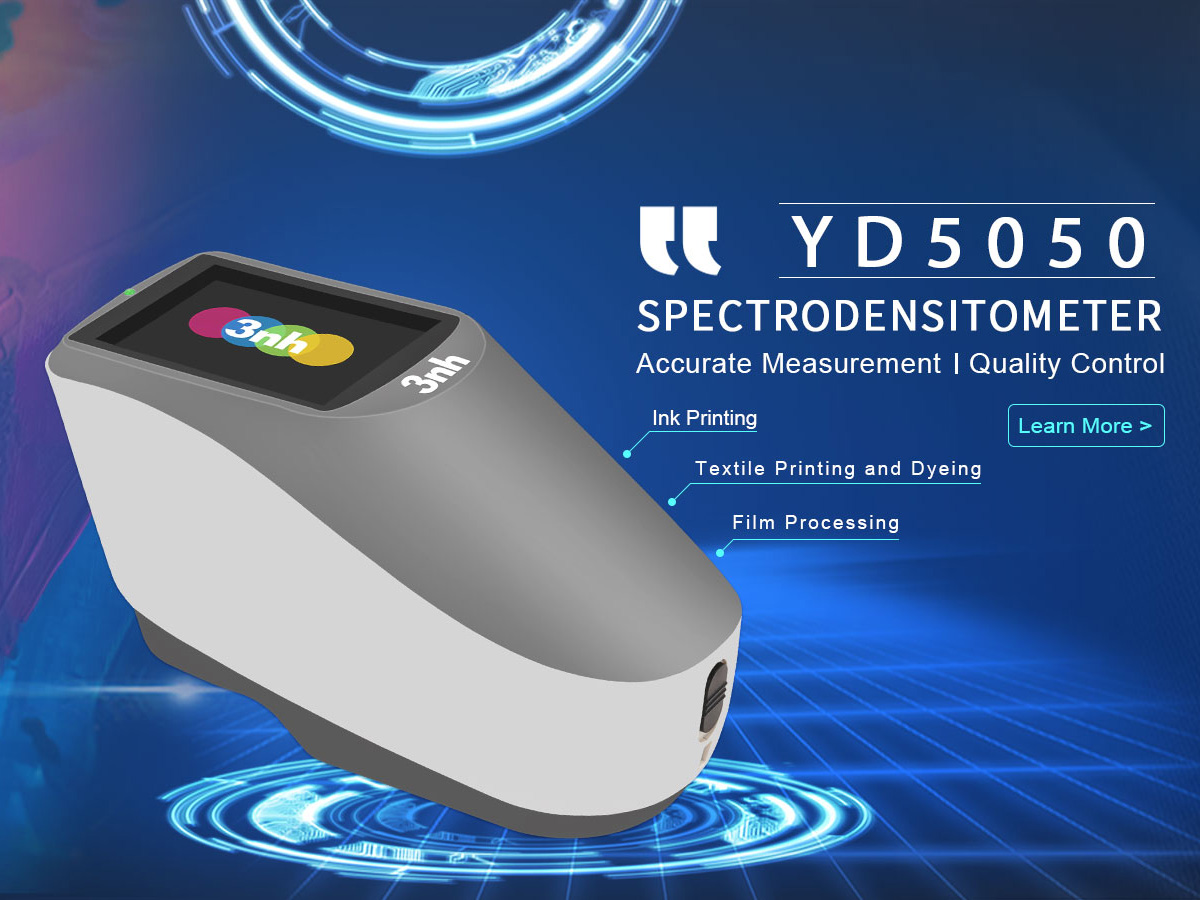

 YD5050_spectrodensitometer

Under the 45/0 geometric optical illumination and the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, the instrument can accurately measure the reflectance data of samples. Under multiple color spaces, it can accurately measure various printing density indexes, color difference formulas and color indexes, and can meet the user's regular testing of various parameters.


Product Features


1. 45/0 geometrical optics structure, comply with CIE, the testing conditions of M O, M 1，M 2 , M 3 stipulated by ISO 13655 standard, it can accurately measure various printing density , overprint rate and other printing parameters.

2. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

3. High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.；

4. Perfect combination of the beautiful appearance and the ergonomic structure design;

5. Optional apertures: Φ2/4/8mm, adapt to more samples;

6. Large-capacity storage space, over 20,000 test data

7. Combined LED light sources with long life and low power consumption, including UV light;

8.  USB/Blue2.1 dual communication mode is widely useful;

9. Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.

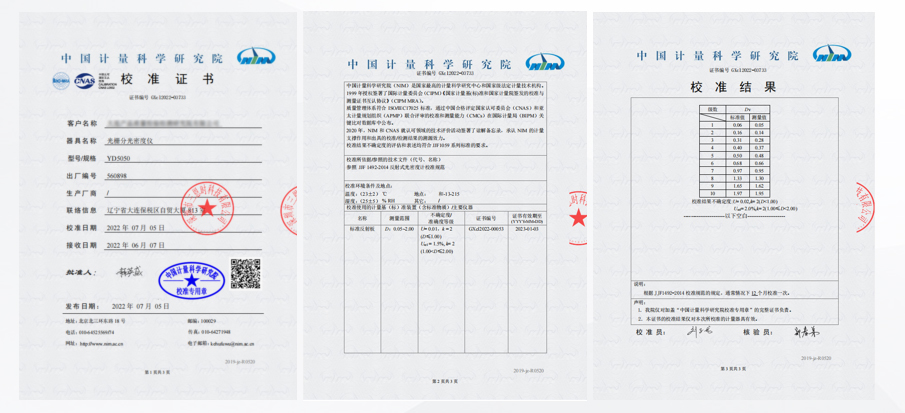

Over metrological certification

After each instrument leaves the factory, it is verified according to the measurement standards of the authoritative verification department, and the measurement data is traced to the National Metrology Institute to ensure the authority of the instrument test data.

instrument metrological certification

Can't find what you want? Contact us!

Color measurement instruments+ software + support = all-round carefree, ThreeNH will take care of your request in a competent and friendly manner from the initial inquiry to the purchase and beyond. You benefit from short response times, customized solutions, high-quality advice from our experienced application engineers and unique support by phone, web-based or on site.

Talk to a Experienced Application Engineer





ModelYD5050
Measurement Geometry45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
Featureshigh accuracy spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control;especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing;able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light SourceCombined LED Light, UV Light
Spectral separation deviceConcave Grating
Detector256 Image Element Double Array CMOS Image Sensor
Wavelength Range400~700nm
Wavelength Pitch10nm
Half Bandwidth10nm
Measurement ConditionsCompliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density StandardsISO Status A, E, I, T
Density indexDensity value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray scale, density scanning
Measurement apertureCustomized one aperture：Φ2mm,Φ4mm,Φ8mm optional
Color SpacesCIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference FormulaΔE*ab,ΔE*94,ΔE*00,ΔE*uv,ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE(Hunter)
Other Colorimetric IndexWI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
MI (Metamerism Index),Opacity,
Observer Angle2°/10°
IlluminantsA,C,D50,D55,D65,D75, F2(CWF),F7(DLP), F11(TL84),F12(TL83/U30), F1,F3,F4,F5,F6,F8,F9,F10(TPL5)
Measurement TimeAbout 1.5s
RepeatabilityDensity: Within 0.01 D
Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)  Except M3
Inter-instrument ErrorWithin ΔE*ab 0.18 (Average for 12 BCRA Series II color tiles) Except M3
Measurement modeSingle Measurement, Average Measurement(2-99)
Size(L*W*H)184*77*105mm
WeightAbout 600g
Power sourceLi-ion battery. 5000 measurements within 8 hours
Illuminant Life Span5 years, more than 3 million times measurements
Display3.5-inch TFT color LCD, Capacitive Touch Screen
InterfaceUSB, Bluetooth ®5.0
Data memory20000 pcs
Language
Simplified Chinese, English, Traditional Chinese
Working EnvironmentTemperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard AccessoryPower Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board, Protective Cover,Polarization filter box,Locating Plate
Optional AccessoryMicro Printer
Notes: The specifications are subject to change without notice.



Our Valued Clients

  • T&K Toka Co. Ltd  ink company
  • Toyo Ink Malaysia Coloring ink
  • Sakata INX company
  • ​altana ink company
  • Marico
  • Emami Paper Mills Ltd paper and packaging
  • fujifilm sericol inks
  • Flint Group  ink company

FAQs About YD5050 Spectrodensitometer

A visual colorimeter is a type of colorimeter that uses the human eye to compare the color depth of a sample with that of a standard solution for semi-quantitative or quantitative analysis of substances. This method is commonly used for quick, rough evaluations in industries such as petroleum, transparent liquids, varnishes, chemicals and printing, as well as for visual color grading in quality control. Its working principle is to compare the sample with a standard and provide visual color measurement results, rather than relying on electronic sensors.

Visual Colorimeters vs. Photoelectric Colorimeters

Visual colorimeters rely on human eye observation, whereas photoelectric colorimeters use sensors to deliver higher precision, complete the measurement automatically through electronic circuits, less subjective color measurement and faster results. They are generally more suitable for rapid, on-line or portable color difference measurement.

Working principle of a photoelectric colorimeter

A light source emits light at specific wavelengths, which interacts with the object surface through reflection and transmission. The light is reflected or absorbed by the sample, and the reflected light or remaining transmitted light is received by a photoelectric sensor (photocell or photodiode). The instrument converts the light intensity signal into an electrical signal, thereby measuring the LAB color values of the sample.

3nh Photoelectric Colorimeter – A Trusted Brand in the Color Measurement Industry

Featuring ultra-high precision, user-friendly interface, light positioning function, high-capacity lithium-ion battery, and multiple optional measurement angles.



Inaccurate color rendering, mismatched results, and noncompliance with ISO 3664 or ASTM D1729 can occur when there are deviations.

a. If this phenomenon occurred, it means the battery power is not enough. You need to charge the battery.

b. When charge the battery, please insert the battery to the instrument, and plug in the adapter to charge the battery. After 5 minutes, the instrument can be turned on.

c. If the instrument still cannot be turned on after charging 5 minutes, you can pull out the adapter and re-plug in to check it. Or repeat this operation.

d. If the instrument still cannot be turned on after charging 5 minutes, you can turn off the colorimeter and turn on it again to check it. Or repeat this operation.

e. If you have tried all the methods above but the colorimeter still cannot be turned on, please change the battery.

The Colour Assessment Cabinet (CAC) is a controlled environment used for the visual evaluation of color wherein the light sources are consistent.


For pharmaceutical tablet color accuracy & compliance (USP/EP/ICH/FDA), these 3nh spectrophotometers deliver superior precision:

1. TS8560 Benchtop (Lab/R&D – Highest Precision)

  • d/8° integrating sphere, SCI/SCE dual mode

  • ΔE*ab ≤ 0.01 (repeatability), IIA ≤ 0.1

  • Small apertures (Φ3mm/Φ8mm) ideal for tablets

  • Auto positioning, temp/humidity compensation

  • 21 CFR Part 11 software for audit trails

  • Best for: R&D, formulation, strict QC, coated tablets3nh TS8560

2. TS8503 Benchtop (Mid-High Accuracy)

  • d/8°, dual CMOS sensor

  • ΔE*ab ≤ 0.018, IIA ≤ 0.24

  • Multi-aperture, camera view locating

  • Stable for batch-to-batch tablet consistency

3. ST70 Portable (Production/Field)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Handheld, fast, non-destructive

  • Best for: line checks, incoming materials, small labs

4. NS800 (Cost-Effective QC)

  • 45/0 geometry, ΔE*ab ≤ 0.04

  • Rugged, touchscreen, easy QC

  • Suitable for uniform, uncoated tablets

Short Recommendation

  • Top lab accuracy: TS8560

  • Best value benchtop: TS8503

  • Portable production: ST70

  • Economical QC: NS800

All meet pharmaceutical standards for tablet color uniformity, coating consistency, and stability testing.


Smooth and uniform surfaces with a large amount of reflected light directly result in high gloss. Some of the factors are the smoothness of the surface, the type of paint that is being used, the thickness of the coating, and curing. The lesser the surface irregularities, the greater the gloss.
