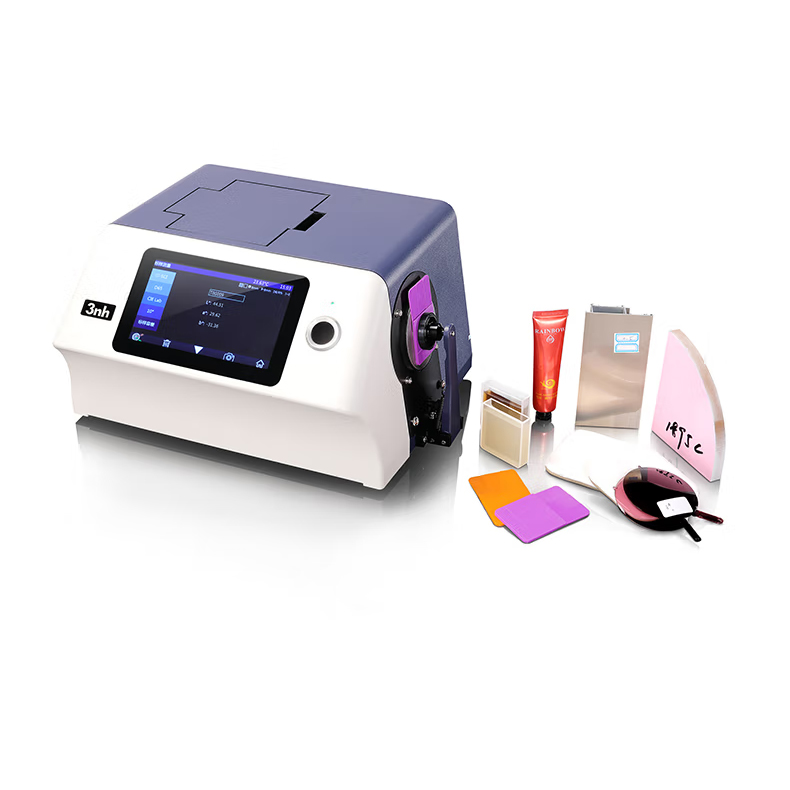

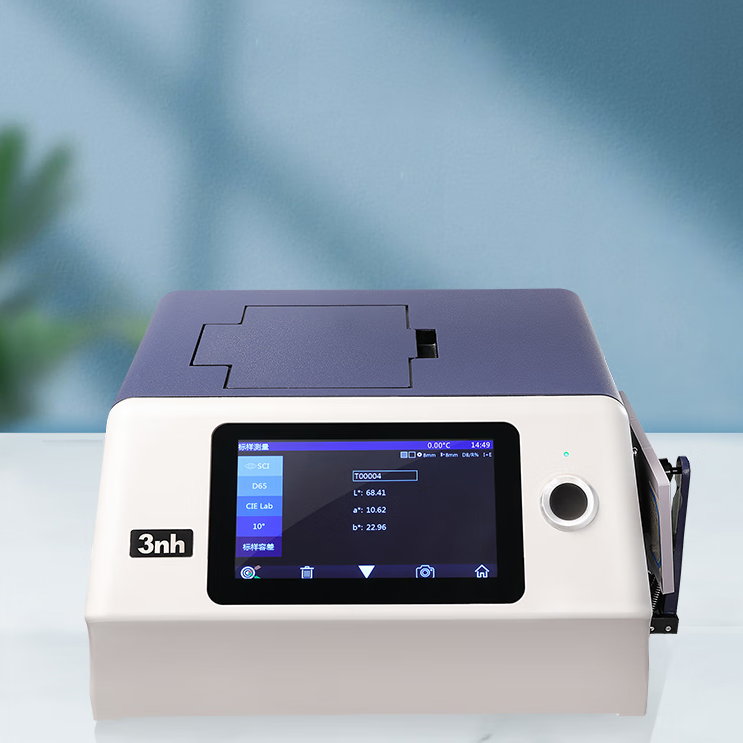

Benchtop Spectrophotometer YS6003(Planned Production Halt)

Color Spectrophotometer: Compact Precision for Light Analysis

The YS6003 Desktop Spectrophotometer delivers lab-grade color precision for industrial applications. YS6003 Color Spectrophotometer is a high-tech device analyzing light’s spectral composition to measure color accurately. Using diffraction gratings or prisms, it splits light into wavelengths, enabling precise quantification of color parameters like hue, saturation, and brightness.


Key Highlights

  • Spectral range: Typically 360–780nm (visible light)

  • High accuracy: Repeatability up to ΔE*ab 0.01

  • Inter - instrument Error Control (ΔE * AB≤0.15)

  • Multiple color spaces: Supports CIELAB, XYZ, sRGB, etc.

  • Built-in QC software enables multi-angle analysis and pass/fail judgments

  • Suits lab R&D, on-site QC in textiles, paints, electronics, and more.

Benchtop Spectrophotometer YS6003(Planned Production Halt) Instructions Operating Manual Benchtop Spectrophotometer YS6003(Planned Production Halt) PDF
This YS6003 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

Outperforms All Comparable Measuring Instruments Flawlessly


YS6003 desktop spectrophotometer can accurately measure and express various color difference formulas and color indexes in a variety of color spaces. The built-in temperature sensor monitors and compensates the test environment to ensure more accurate measurement results. It is widely used in reflection samples, transparent samples color transfer and quality control in plastic electronics, paint and ink, textile and garment printing, printing and other industries.

The YS6003 3nh Spectrophotometer is an efficient, easy to use and highly capable analytical workhorse that has been designed and engineered with uncompromised robustness and the lowest cost of ownership in mind. Innovative and unique technologies ensure that the YS6003 is a four-instruments-in-one design that’s capable of all current and future measurement needs.

The YS6003 Spectrophotometer is a robust solution for fast, repeatable results that deliver:



1, High configuration of hardware: 7 inches TFT Color Capacitive Touch-screen Display; Bluetooth 2.1; Concave Grating.

2, Double Array 256 Image Element CMOS Sensor; Long life-span stable xenon lamp.

3, With reflective and transmissive spectrum, accurate Lab value, good to calculate color formula and do precise color transmission.

4, Auto identify measuring aperture. Freely switchable between 3 measuring apertures: Φ 25.4mm/8mm/4mm.

5, Built-in temperature sensor to monitor and compensate the measuring temperature to ensure the measurement more precision.

6, Wavelength range 360nm – 780nm.It can be used to test fluorescent samples with wide applicability and simple operation

7, Independent light source detector to ensure the light source reliable.

8, Multiple measurement modes: Quality Management Mode, Sample Mode; Meet more users’ requirement.

9, Multiple accessories, sample holders, fixation clamp, suitable to more working condition.

10, Big capacity data storage, for 20000 pieces test result.

11, Built-in camera locating.

12, More powerful extended functions at the PC software.

YS6003 Application Industry

YS6003 benchtop spectrophotometer device is used to do precise color analysis and transmission in laboratories, allows the user to color measurement most applications including powders, liquids, gels, pastes, granules and solid materials. YS6003 is commonly used in industries like textiles, paints, plastics, food, cosmetics, and printing to ensure consistency and accuracy in color reproduction.

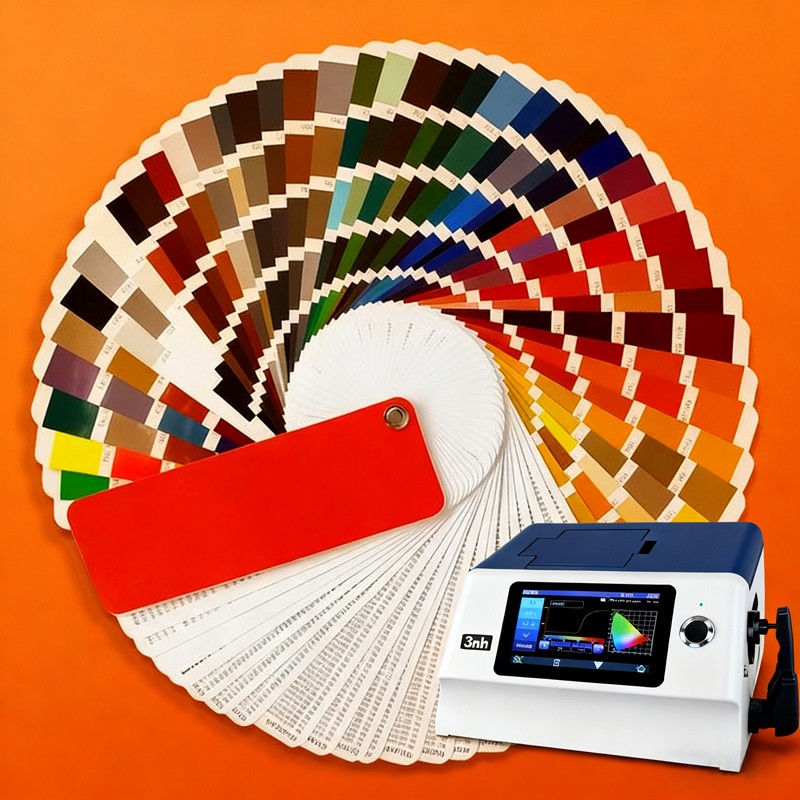

Comparing and Matching Color Chips

In design and production workflows, color matching straddles the divide between art and analytical reasoning. Users often have to compare two color chips, or match a color to a digital record.

 This is the purpose for which 3nh high-accuracy spectrophotometers are purpose built. They measure color samples and automatically calculate ΔE values to identify differences that the eye cannot see. Users can match new materials to existing standards in an instant thanks to built-in data logging and customizable color databases.

 This is particularly important in the automotive refinishing and coating industries, as well as in printing and plastics, where brand-specific color consistency is crucial.

Why Conduct Dyeing Formula Testing1.jpg


Discover Excellence in Laboratory Color Measurement Equipment

At 3nh, we welcome you to a world of excellence in laboratory and color measurement equipment. We know that precision is fundamental to your research work, and that's why we offer a wide variety of color measurement instruments designed to meet the highest color quality standards.

Get in Touch Now


Typical Performance Specifications:



ModelYS6003
Optical GeometryReflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle);SCI (specular component included)/SCE (specular component excluded) ; Include UV / excluded UV light source;
Transmittance: di:0°, de:0° (diffuse illumination: 0° viewing); SCI (specular component included)/SCE (specular component excluded) ;
Haze(ASTM D1003);
Conforms to CIE No.15，GB/T 3978,GB 2893,GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7
ApplicationIt is used for accurate analysis and transmission of laboratory color.     Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control.
Integrating Sphere SizeΦ154mm
Light Source360 nm to 780 nm, Combined LED Light (5 million life span)
Spectrophotometric ModeConcave Grating
Sensor256 Image Element Double Array CMOS Image Sensor
Wavelength Range360-780nm
Wavelength Interval10nm
Semiband Width5nm
Measured Reflectance Range0-200%
Measuring ApertureReflective : Φ30mm/Φ25.4mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm;
Transmissive : Φ30mm/Φ25mm;
Remark: 1. Automatic identification of switch caliber
2. Customized Configuration caliber and lens position
Specular ComponentReflectance: SCI&SCE  / Transmittance: SCI&SCE
Color SpaceCIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99
Color Difference FormulaΔE*ab,ΔE*uv,ΔE*94 ,ΔE*cmc(2:1),ΔE*cmc(1:1) ,ΔE*00, DINΔE99, ΔE(Hunter)
Other Colorimetric IndexWI (ASTM E313, CIE/ISO, AATCC, Hunter),
YI (ASTM D1925, ASTM 313),
APHA/Hazen/Pt-Co, Saybolt
MI (Metamerism Index),
Staining Fastness, Color Fastness, Color Strength, Opacity,
8° Glossiness,Gardner Index, 555 Index, Haze(ASTM D1003)
Observer Angle2°/10°
IlluminantD65,A,C,D50,D55,D75, F1,F2,F3,F4,F5,F6, F7,F8,F9,F10,F11,F12, CWF,DLF,TL83,TL84,TPL5,U30
Displayed DataSpectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring TimeAbout 2.4s (Measure SCI & SCE about 5s)
RepeatabilitySpectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%);
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.01 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration);                                                       Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%);
Chromaticity value:Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration).
Inter-instrument ErrorΦ25.4mm/SCI, Within ΔE*ab 0.15  (Average for 12 BCRA Series II color tiles)
DimensionL*W*H=370x300x200mm
WeightApprox. 9.6kg
PowerAC 24V, 3A Power adapter power supply
Illuminant Life Span5 years, more than 3 million times measurements
Display7-inch TFT color LCD, Capacitive Touch Screen
Data PortUSB & Print serial port
Data StorageStandard 1000 Pcs, Sample 20000 Pcs
LanguageSimplified Chinese, Traditional Chinese, English,
Operating Environment0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment-20~50℃, 0~85%RH (no condensing)
Standard AccessoryPower Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 8 caliber, 4 caliber
Optional AccessoryMicro-printer, Transmissive Test Component, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components, culture dish
Notes: The specifications are subject to change without notice. YS6003 quality management software can only be used for data management



Our Valued Clients

  • vtech logo vector
  • Client jaquar
  • customer nesling logo
  • 3nh customer cadbury
  • customer bell logo
  • Clients gsk logo
  • studds logo
  • cello logo

FAQs About YS6003 Benchtop Spectrophotometers

A benchtop spectrophotometer is not universally better—it outperforms portable units in precision and lab testing, while portable models win for on-site flexibility. Which one is better depends entirely on your testing scenarios, accuracy requirements and workflow.


Benchtop Spectrophotometer Advantages

  • Higher measurement accuracy & repeatability, excellent inter-instrument agreement

  • Supports full-spectrum analysis, more geometric optical designs

  • Larger testing aperture, compatible with curved, textured and bulk samples

  • Ideal for laboratory QC, R&D, formula matching and standard color calibration

  • Stable performance, less affected by external light and environment


Portable Spectrophotometer Advantages

  • Compact, lightweight, test anywhere anytime (production line, warehouse, on-site inspection)

  • Fast one-click measurement, no fixed power and lab space required

  • Perfect for incoming material inspection, on-line production spot check, field color comparison

  • Lower cost and easier to operate for frontline workers


Which One Should You Choose?


Choose benchtop if you need:

Lab R&D, high-precision color grading, standard sample database establishment, strict quality control for cosmetics, plastics, textiles and food.


Choose portable if you need:

On-site rapid detection, production line mobile sampling, outdoor and on-location color measurement.


For premier ink quality control (CMYK, spot colors, printing density, formulation & press-side QC), these 3nh spectrophotometers / spectrodensitometers stand above the rest:


1. YD5050 / YD5010 (Best for Printing & Ink Press QC)

  • 45/0 ring illumination, ISO 5-4 / ISO 13655 (M0/M1/M2/M3)

  • Measures density (Status T/E/A/I), dot gain, trap, print contrast

  • ΔE*ab ≤ 0.03, density ≤ 0.01D

  • Small apertures (Φ2/4/8mm) for fine print & ink dots

  • Ideal: packaging, label, gravure, flexo, CMYK/spot color control

    YD5050


2. TS8560 Benchtop (Lab Formulation & Highest Accuracy)

  • d/8° sphere, SCI/SCE, UV control

  • ΔE*ab ≤ 0.01 (repeatability), IIA ≤ 0.1

  • Multi-apertures (Φ3/8/15/25mm)

  • Best for: R&D, ink formulation, batch consistency, fluorescent inks

    TS8560_Benchtop_colorimeter


3. TS7700 Portable (Production & Field Matching)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Fast, handheld, large Φ20mm aperture

  • Best for: press-side checks, warehouse incoming ink, on-site matching

    TS7700_Portable_colorimeter
    3nh TS7700

4. YS6060 Benchtop (High-End Lab & Transmissive Inks)

  • 360–780nm, UV adjustable, dual CMOS

  • Reflection & transmission modes

  • Multi-aperture (Φ4/8/15/25.4mm)

  • Best for: high-precision lab R&D, transparent/fluorescent inks

    YS6060_Benchtop_colorimeter


Short Recommendation

  • Best press-side / print QC: YD5050

  • Top lab formulation: TS8560

  • Best portable production: TS7700

  • High-end lab R&D: YS6060

All ensure ultra-precise color, density & consistency for offset, flexo, gravure, screen-printing & packaging inks.


To answer this question, you first need to clarify your specific needs:

  • Is it for simple color quality control (QC)?

  • To coordinate with supply chain color management?

  • To monitor on-line color stability?

  • Do you require computer color matching or production color correction?

  • What is your budget?

  • Systematic supervision and evaluation of color performance in dyed products?

If you aren’t fully clear about your requirements at the initial stage, our color management engineers are ready to communicate with you. We will recommend solutions tailored to your needs. When conditions permit, we can provide prototype demonstrations and trial testing to ensure the instrument meets your practical application requirements.

A spectrophotometer and colorimeter are certain instruments used by scientists to measure color by quantifying reflected or transmitted light. The results are presented in color spaces, such as L*a*b*, RGB, or XYZ. This enables the accuracy of comparison and tracking of the changes in color in chemical or material research.

D/8°and 45°/0°are two kinds of illumination geometry with different optical geometry design. D/8°illumination geometry is more widely used for the color comparison and measurement of high-gloss materials; 45°/0°illumination geometry is mainly used in printing and packaging industries.
