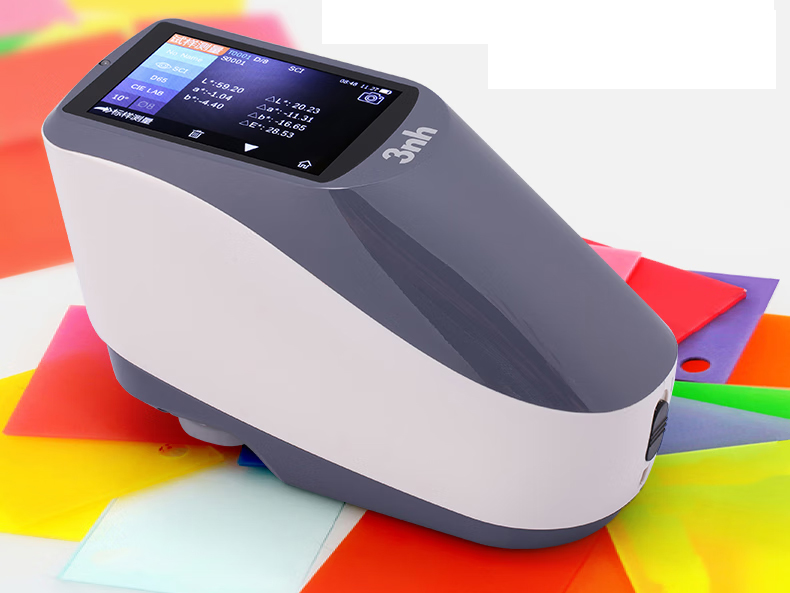

YS3010 Handheld Spectrophotometer with 8mm Single Aperture

Accurate Color Assessment Instrument

The YS3010 spectrophotometer is an affordable entry-level spectrometer for color measurement. YS3010 Grating spectrophotometer developed by 3nh independently, features with stable performance, precise measurement and powerful functions in leading position of same industry. YS3010 Economic Spectrophotometer Cost-effective, four kinds of most widely used lluminants, 8mm aperture, SCI/SCE, good accuracy, large storage capacity, meet most needs.


Key Highlights

  • D/8 geometrical optics, conforms to CIE No.15,GB/T3978,GB2893...

  • Reliable repeatability ( ΔE*≤0.06) and inter-instrument agreement (ΔEab ≤0.4)

  • Single 8/4mm aperture, SCI & SCE together

  • Accurate spectra &Lab data , for color matching & delivery

  • Combined LED light source, excluding UV

  • High configuration:3.5-inch TFT color LCD,Capacitive Touch Screen

  • Large storage capacity , Apprx. 20,000 data;

YS3010 Handheld Spectrophotometer with 8mm Single Aperture Instructions Operating Manual YS3010 Handheld Spectrophotometer with 8mm Single Aperture PDF
This YS3010 Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

YS3010 Handheld Spectrophotometer with 8mm Single Aperture

YS3010 a simple-to-use instrument with advanced performance. YS30 Series grating spectrophotometer adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands. 8mm, 4mm or customized aperture is optional. Speical UV light makes YS3060 easy to measure sample with UV and high accuracy and extended function PC software let it be good partner for colorist and color quality contral management.

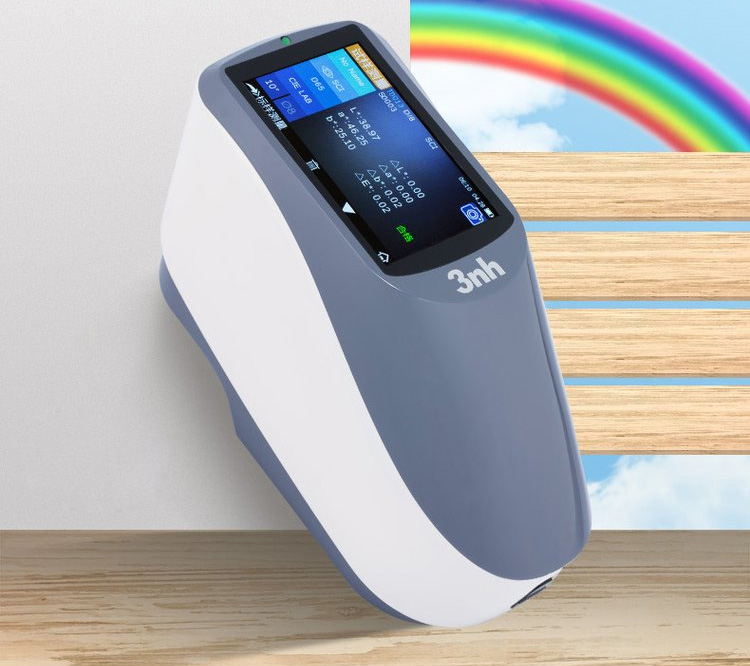

high quality ys3010 instrument



YS3060 UV Grating Spectrophotometer

Full Illuminants + UV, 8mm&4mm Apertures, SCI&SCE, Bluetooth Comm, High Precision.


YS3020 Grating Spectrophotometer

Multi-illuminants, Customizable Aperture, SCI&SCE, Bluetooth Comm, High Precision.



YS3010 Grating Spectrophotometer

4 Illuminants, 8mm Aperture, SCI&SCE, Good Precision.



Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3010 color spectrophotometer features only 8mm single aperture. Both SCI and SCE mode makes it widely use in many applications. It has high accuracy 0.06 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.

YS3010 Handheld Spectrophotometer with 8mm Single Aperture

YS3010 Features

A.Perfect combination of beautiful appearance and the human body mechanics structural design;

B.D/8 geometrical optics, conforms with CIE No.15,GB/T 3978,GB2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil

C.Use long life and low power consumption combined LED light source

D.Single 8mm aperture, support both SCI and SCE at the same time;

E.Measure sample spectra, accurate Lab data , can be used in color matching and accurate color transmission;

F.High electronic hardware configuration: 3.5-inch TFT color LCD,Capacitive Touch Screen, concave grating, 256 Iimage Element Double Arrays CMOS Image Sensor;

G.USB port, widely useful;

H.Super stain-resistant and stable standard white calibration plate;

I.Large capacity storage space, over 20,000 measurement data;

J.Two standard observer angles, a variety of illuminant, a variety of color indexes, conforms with a variety of standard colorimetric data, meet a variety of customers' demand for color measurement;

K.Camera Locating Function, better position;

l.PC software has a powerful function extension.

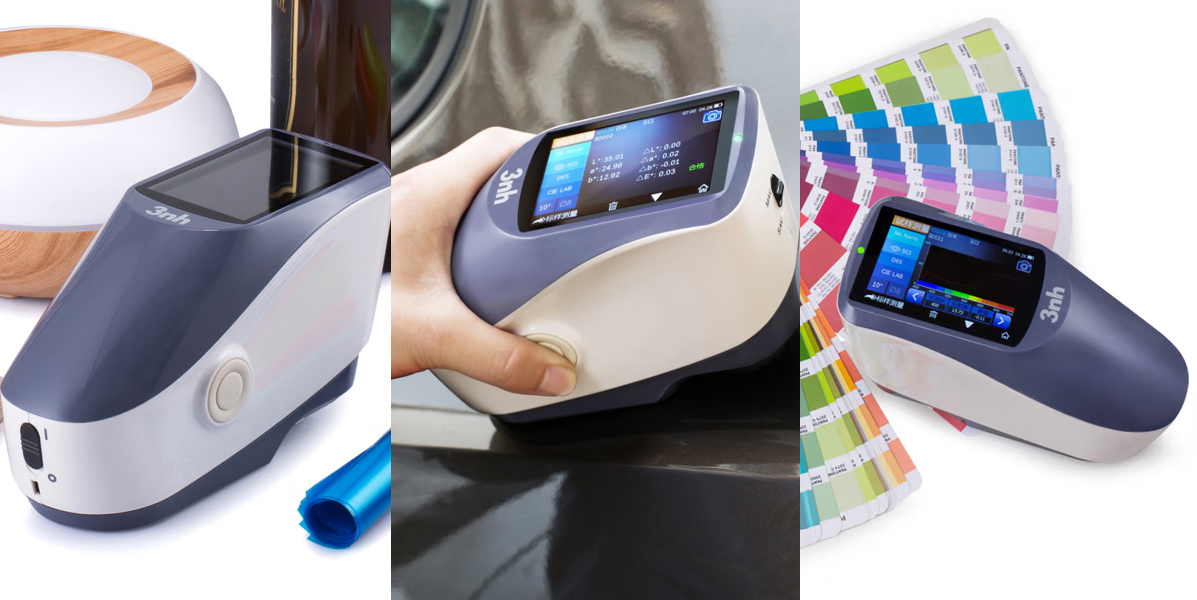

YS3010_color_testing_machine

Watch this video to learn about the features of the YS3010 Spectrophotometer from Threenh



Application Industry

3nh handheld spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.



color spectrophotometer application

YS3010 Color Instruments Image


YS3010 Ys3060 measur solid particles
YS3010 Ys3060 measuring liquid color
YS3010 Ys3060 measures solids and liquid COLOR
YS3060 instrument package images
YS3010 YS3060 instrument package images
YS3010 Ys3060 measures plastics color

Not finding exactly what you need?

Collaborate with our color experts team to design and build a custom colorimeter solution that perfectly matches your requirements.


Factory Outlet Company Threenh to Provide You with Best Spectrophotometer

Contact Us for Wholesale Pricing

YS3010 Spectrophotometer Parameter



 Model Items

YS3060

YS3020

YS3010

Optical Geometry

Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)

Integrating Sphere Size

48mm

Light Source

Combined LED Light, UV Light

Combined LED Light

Spectrophotometric Mode

Concave Grating

Sensor

256 Image Element Double Array CMOS Image Sensor

Wavelength Range

400-700nm

Wavelength Interval

10nm

Semiband Width

10nm

Measured Reflectance Range

0-200%

Measuring Aperture

Dual Aperture: 10mm/8mm & 5mm/4mm

Customized Aperture: 8mm/4mm/1×3mm

Single Aperture: 8mm/10mm

Specular Component

SCI&SCE

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2)

Color Difference Formula

ΔE*ab,ΔE*uv,ΔE*94 ,ΔE*cmc(2:1),ΔE*cmc(1:1) ,ΔE*00, DINΔE99, ΔE(Hunter)

Other Colorimetric Index

Spectrum Reflectance Rate, WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,TaubeBergerStensby), YI(ASTM D1925,ASTM E313-00,ASTM E313-73) Metamerism Index Mt， Staining Fastness, Color Fastness, Strength (dye strength, tinting strength), Opacity 8-degree Gloss, 555 Index，Blackness（My,dM）, Color Density CMYK(A,T,E,M), Tint(ASTM E313-00)，Munsell（Some functions are realized through the computer）

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30),B,U35,NBF, ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-C2,LED-C3,LED-C5, Light source can be customized(a total of 41 kinds of light sources, some of which are realized through the host computer/APP)

Displayed Data

Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset

Measuring Time

2.6s

Repeatability

MAV/SCI: ΔE*≤0.03

MAV/SCI: ΔE*≤0.05

MAV/SCI: ΔE*≤0.06

Inter-instrument Error

MAV/SCI: ΔE*≤0.15

MAV/SCI: ΔE*≤0.2

MAV/SCI: ΔE*≤0.4

Measurement Mode

Single Measurement, Average Measurement

Locating Method

Camera View Finder Locating

Battery

Li-ion battery. 5000 measurements within 8 hours

Dimension

L*W*H=184*77*105mm

Weight

600g

Illuminant Life Span

5 years, more than 3 million times measurements

Display

3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port

USB, Bluetooth 5.0

Data Storage

Standard 1000 Pcs, Sample 20000 Pcs

Standard 800 Pcs, Sample 20000 Pcs

Language

Chinese Simplified, Chinese Traditional, English, French, Portuguese, Russian, Spanish, Italian, German

Operating Environment

0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment

-20~50℃, 0~85%RH (no condensing)

Standard Accessory

Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover

Optional Accessory

Micro Printer, Powder Test Box

Notes: The specifications are subject to change without notice.



Our Valued Clients

  • Client mankind
  • customer cipla
  • customer century laminate
  • cello logo
  • orif Client logo
  • emami logo
  • 3nh customer cadbury
  • customer cubic logo

FAQs About YS3010 Portable Spectrophotometers

Yes, we offer free samples for test, you are welcome to order samples to experience our excellent quality and service.

For premier glass quality grading (color, transmittance, haze, coating uniformity, architectural/auto/optical glass), the top 3nh & industry-leading instruments are:


1. 3nh YS6060 Benchtop (Best Lab Accuracy)

  • d/8° integrating sphere, 360–780nm, UV adjustable

  • Dual mode: reflectance + transmission

  • ΔE*ab ≤ 0.015, IIA ≤ 0.2, haze measurement

  • Multi-apertures (Φ4/8/15/25.4mm)

  • Ideal: colored glass, coated glass, optical glass, lab R&D


2. 3nh TS8560 Benchtop (Ultra-High Precision)

  • d/8° sphere, SCI/SCE, UV control

  • ΔE*ab ≤ 0.01 (repeatability)

  • Large transmission compartment

    Best for: high-end architectural glass, Low-E coated glass



3. 3nh ST70 Portable (Production/Field)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Handheld, fast, non-destructive

    Best for: line checks, incoming glass, on-site grading



4. 3nh NS810 Portable (Cost-Effective)

  • 45/0 geometry, ΔE*ab ≤ 0.04

  • Touchscreen, rugged

  • Best for: solid-color glass, routine QC

Short Recommendation

  • Top lab: YS6060

  • Ultra-precision: TS8560

  • Portable production: ST70

  • Economical QC: NS810

All measure color consistency, transmittance, haze & coating uniformity for glass quality grading.


SCI&SCE are two method in the color measurement. SCI means Specular Component Include,SCE means Specular Component Exclude.

Under the method of SCE, only test diffuse refection and exclude specular reflection. In that way, the test result is similar to object color was observed by human eyes.

Under the method SCI, both the diffuse refection and specular reflection will be included. In that way, the value about the color is more objective. It will not effect by the environment condition.

When we choose the instrument, those elements should be taking into consideration.


Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

 Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
