TS-23C Spectrophotometer Machine

Color Scanner Enhanced Colour Measurement Tool

The revolutionary handheld color-measurement tool that accurately reads colour on a wide range of surfaces and materials to produce a precise match with any of thousands of colours from available electronic fan decks.


Key Highlights

  • Optical Geometry: 45/0 circular uniform illumination geometry;

  • Dual aperture (10 mm, 5 mm,);

  • Rich color spaces & color‑difference formulas;

  • Good repeatability: ΔE*ab ≤0.022;

  • full‑featured PC color‑management software supported;

  • Widely applied in plastics, paints & coatings, ink, ceramic, traffic‑safety material laboratory R&D and incoming‑batch QC;

TS-23C Spectrophotometer Machine Instructions Operating Manual TS-23C Spectrophotometer Machine PDF
This TS-23C Spectrophotometer Machine Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

3nh TS-23C spectrophotometer is a standard spectrophotometer that using a 45/0 optical geometry and features planar grating spectral splitting technology and a silicon photodiode array (dual array of 40 groups) sensor, ensuring stable performance. Capable of full-band spectral analysis from 400 to 700 nm。It can accurately reproduce the true colors of plastics, textiles, and various paint coatings, avoiding metamerism and making the measurement results more reliable. Instrument inter-machine variation is strictly controlled within ΔE*ab≤0.2 ,to ensure color consistency between the production line and the global supply chain. It is widely used in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics for precise color measurement and quality control.

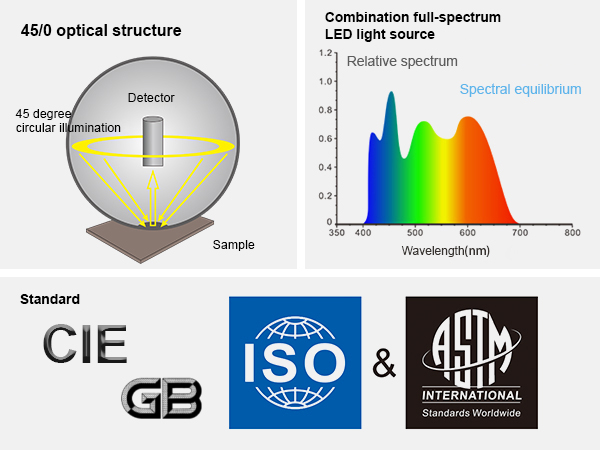

一、Professional optical systems

Optical geometry: It adopts a 45/0 optical structure (45° ring-shaped illumination and 0° reception), Eliminating orientation dependence significantly reduces interference from the texture of matte and textured materials, making the measurement results closer to the actual perception of the human eye.

Combined full-spectrum LED light source： The full-band balanced LED light source ensures sufficient spectral distribution in the visible light range, avoiding the spectral deficiencies of white LEDs in specific bands, thus guaranteeing the instrument's measurement speed and the accuracy of the measurement results.

Industry Standards: Compliant with multiple authoritative standards including CIE, ISO, ASTM, and national standards, ensuring accurate measurement specifications.



二、Reliable measurement performance

Repeatability accuracy: using dual-array 40-group silicon photodiode sensor，It achieves fine spectral dispersion and high-sensitivity photosensitive acquisition across the entire 400-700nm wavelength range, providing core technical support for the instrument's ultra-high repeatability accuracy of ΔE*ab≤0.022, restoring subtle color differences in samples, and meeting the color control needs of high-precision industries.

Inter-station consistency：The difference between production lines is controlled within an ultra-small range of ΔE*ab≤0.2, ensuring that color standards remain consistent across multiple production lines, workshops, and regions, thus meeting the comprehensive quality control needs of large enterprises and supply chain factories.

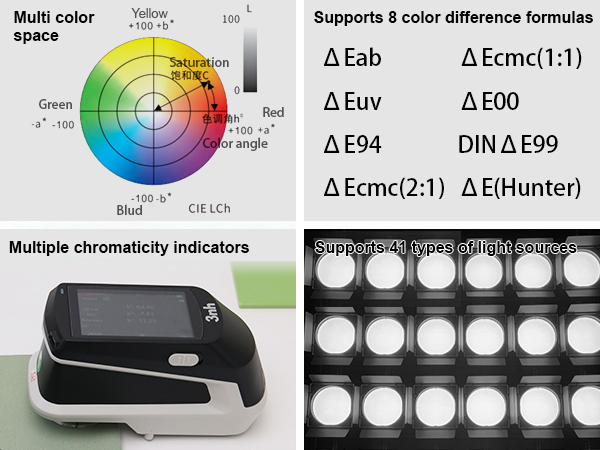

三、Comprehensive Color Analysis

Rich color space：CIE LAB、XYZ、Yxy、LCh、CIE LUV、s-RGB、HunterLab、βxy、DIN Lab99、Munsell (C/2) Multiple color spaces，Meets the requirements of different industry standards.

Supports 8 color difference formulas：ΔEab、ΔEuv、ΔE94、ΔEcmc(2:1)、ΔEcmc(1:1)、ΔE00、DINΔE99、ΔE (Hunter), Adaptable to color difference assessment in different scenarios.

Comprehensive colorimetric index: In addition to commonly used color index measurements, it also provides whiteness index, yellowness index, metamerism index, blackness, Tint (ASTM E313-00), Munsell (C/2), staining fastness, color change fastness, force content, color density (CMYK), and opacity (some are achieved through PC software /APP software).

Supports observation of 41 light sources：It covers 41 evaluation light sources and simulates color performance under different lighting environments.

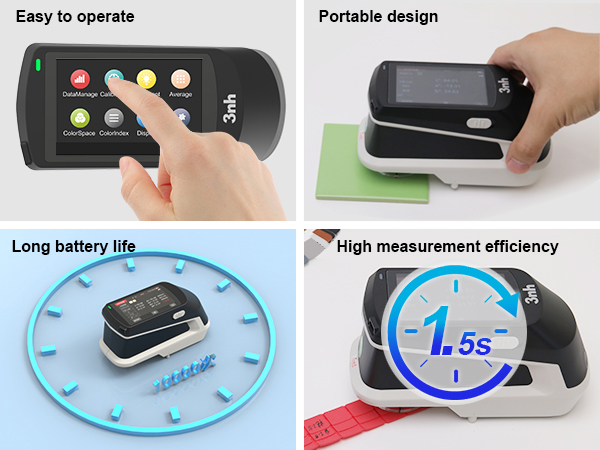

四、Easy to operate and use

User-friendly interface: Equipped with a 3.5-inch TFT true-color capacitive touchscreen, it can display spectrum/data, sample colorimetric values, color difference values/graphs, pass/fail results, color simulation, Color Offset, and other results to meet diverse industry needs.

Portable design：It features an ergonomic and lightweight design, making it comfortable to hold and easy to carry to workshops, outdoor testing sites, and other measurement scenarios.

Long battery life： With a built-in high-performance lithium battery, it can perform 10,000 tests in 8 hours, meeting the needs of long-term continuous operation.

High measurement efficiency：A single measurement takes approximately 1.5 seconds, balancing accuracy with measurement speed.

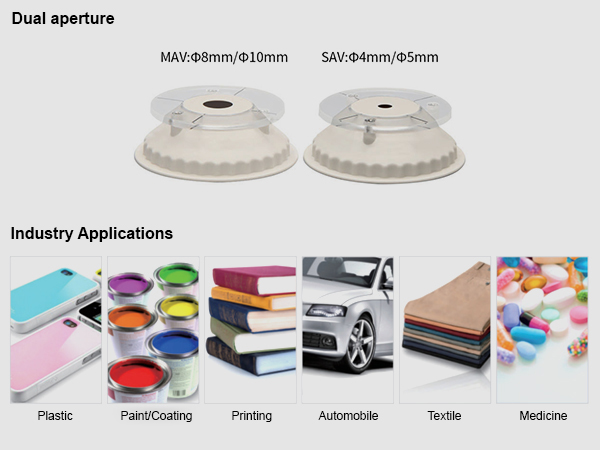

五、Wide range of applicable scenarios

Dual-caliber configuration: Equipped with dual-aperture (10mm platform + 5mm platform), it can flexibly adapt to large and small size samples.

Multi-industry adaptation：Used for precise color measurement and quality control in industries such as plastics and electronics, paints and inks, textiles and apparel printing and dyeing, printing, and ceramics.




3nh: Your partner for reliable color measurement technology

We manufacture high-performance spectrophotometers, color testers and standard light sources. Our accurate, durable equipment helps factories achieve uniform color quality across coatings, plastics, printing and textiles worldwide.

Have Some Questions?


Need help selecting the right methodology and instruments for your measurement needs? Please complete the following fields and and our color experts will contact you promptly.

Talk to a Color Experts

Spectrocolorimeter

Model

TS-23C

Illumination/Observation system

45/0(45 ring-shaped illumination, vertical viewing); Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7

Features

The standard version of the spectrophotometer is used for precise color measurement and quality control in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics.

Light Source

Combined LED Light

Spectral separation device

Flat Grating

Detector

Silicon photodiode array (dual array, 40 groups)

Wavelength Range

400~700nm

Wavelength Pitch

10nm

Half Bandwidth

10nm

Reflectance resolution

0.01%

Reflectance Range

0~200%

Measuring Aperture

Dual aperture:10mm platform+5mm platform

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99,Munsell(C/2)

Color Difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)

Other Colorimetric Index

WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925，ASTM 313),
Metamerism Index MI，Blackness (My,dM)，Tint(ASTM E313-00)，Munsell(C/2)，
Staining Fastness, Color Fastness, Color Density CMYK,Opacity（Some functions are realized through PC software）

Observer Angle

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F1,F2,F3,F4，F5，F6,F7,F8,F9，F10,F11,F12,CWF,DLF,TL83,TL84,TPL5,U30，B,U35,NBF,
ID50,ID65,LED-B1,LED-B2 ,LED-B3,LED-B4,LED-B5,LED-BH1 ,LED-RGB1,LED-V1,LED-V2 ,LED-C2,LED-C3,LED-C5,Light source can be customized (a total of 41 kinds of light sources, some of which are realized through the host computer/APP)

Display Data

Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset

Measurement Time

About 1.5s

Display resolution

0.01

Repeatability

Spectral reflectance: MAV,Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%)
Chromaticity value: MAV, within ΔE*ab 0.022 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)

Inter-instrument Error

MAV,Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles)

Measurement mode

Single Measurement, Average Measurement(2-99)

Size(L*W*H)

169X73X87mm

Weight

About 446g

Battery power

Li-ion battery. 5000 measurements within 8 hours

Illuminant Life Span

5 years, more than 3 million times measurements

Display

3.5-inch TFT color LCD, Capacitive Touch Screen

Interface

USB, Bluetooth 5.0

Data memory

Standard 1000 Pcs, Sample 20000 Pcs

Language

Chinese Simplified, Chinese Traditional, English, Russian

Software

Andriod,iOS,Windows,WeChat Mini Program

Working Environment

Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m

Storage Environment

Temperature: -20~50℃; Humidity: 0~85% (No Condensation)

Standard Accessory

Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover, Measuring Apertures

Optional Accessory

Micro Printer, Powder Test Box, Universal test components, Locating Plate

Note

Technical specifications are for reference only; the actual product sold shall prevail.



Our Valued Clients

  • Client mankind
  • studds logo
  • customer bell logo
  • customer cipla
  • maruti suzuki logo
  • customer swaraj
  • Clients honda logo
  • partner axa

FAQs About  Portable Spectrophotometers

Colorimeters is a color measurement device that are used to capture, communicate, and evaluate color. Colorimeters are more affordable, portable, and easier to use, making them a suitable choice for basic color measurement applications, ideal for quick and routine tests.

spectrophotometers offer higher precision and comprehensive data analysis, are better for research, development, and when dealing with complex or highly precise requirements. The biggest difference is in capability and usage. Spectrophotometers are incredibly powerful and can offer more in-depth color measurements than a colorimeter, such as spectral data.

Colorimeters are primarily used for color quality control, while spectrophotometers are used for analysis and formulation. You can choose the appropriate color measurement equipment according to your application needs.


The Ideal Accurate and User - Friendly Spectrophotometer for Your Needs

This Spectrophotometer device measures the reflectivity，absorbance, transmittance, and fluorescence of light passing through samples, providing invaluable data for a wide range of applications, provide unrivaled accuracy for reliable results.

Selecting an appropriate spectrophotometer offers significant advantages for precision color analysis and quality control. When choosing an accurate and user - friendly spectrophotometer, consider factors such as wavelength range, sensitivity, sample handling options, and available software features. By investing in the right spectrophotometer, you can streamline your analytical processes, obtain more accurate results, and enhance the overall efficiency of your laboratory or industrial operations.

 Choosing the right model—whether portable, benchtop, or inline—aligns technology with specific industry needs, ensuring long-term reliability and optimized color management.

The main instruments used to detect color are spectrophotometers and colorimeters (including photoelectric integrating colorimeters).

Spectrophotometer: High-precision option. It analyzes the full visible light spectrum to measure color accurately. Suitable for complex scenarios like textured surfaces, special effect colors, or batch consistency checks in industries such as paint and coatings.

Colorimeter (Photoelectric Integrating Colorimeter): Cost-effective and portable. It uses RGB filters to measure tristimulus values directly. Ideal for quick color difference detection in simple applications. Key Selection Tip Choose based on accuracy needs: use a spectrophotometer for high-precision color measurement, and a colorimeter for fast, basic color difference checks.


D/8°and 45°/0°are two kinds of illumination geometry with different optical geometry design. D/8°illumination geometry is more widely used for the color comparison and measurement of high-gloss materials; 45°/0°illumination geometry is mainly used in printing and packaging industries.

Yes, we can offer Spectrodensitometer quality certification issued by our lab free of charge, or issued by third-party international inspection Organizations with extra charge, please contact us for confirmation.
