PS301 Sectrophotometer

PS301 Sectrophotometer Instructions Operating Manual PS301 Sectrophotometer PDF
This PS301 Sectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

The 3nh PS301 spectrophotometer is a high-precision colorimeter specially designed for micro-aperture precision measurement and automated production line integration. It utilizes a 1mm micro-aperture diameter, enabling accurate color measurement of extremely small areas and minute color blocks. The instrument integrates multiple electronic color charts, allowing for rapid matching from physical samples to industry-standard color chart numbers, thus improving color matching and quality inspection efficiency.

The PS301 spectrophotometer features a dual-purpose design, supporting both unit and probe measurements, or probe-only measurements, flexibly adapting to both manual and automated scenarios. It employs a dual-channel silicon photodiode array sensor and nano-integrated spectral devices , ensuring fast and stable measurements. Supporting RS485/USB communication and multi-unit collaboration , and with accompanying software, it can be integrated into production lines and robotic arms, providing real-time color data monitoring and synchronous data transmission, offering efficient quality control solutions for various industries.

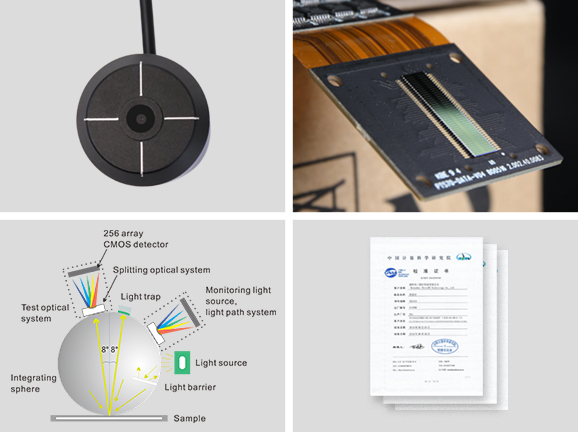

I. Precise Measurement: Micro-orifice Design, Authoritative Data

1. Equipped with a 1mm ultra-small aperture :Designed specifically for color difference detection of extremely small objects, tiny areas, narrow edges, and miniature samples, accurately capturing detailed color information.

2. High-precision spectroscopic technology: Adopting nano-spectroscopy technology and dual-channel silicon photodiode array (18 groups in two columns), the repeatability ΔE*ab≤0.03 and the inter-station difference ΔE*ab≤0.4 ensure the repeatability and consistency of measurement data.

3. International standard optical structure :D/8 SCI illumination method, conforming to multiple international standards such as CIE, ISO, ASTM, and DIN.

4. Authoritative metrological certification : The factory guarantees metrological compliance, and the data is traceable.

I. Precise Measurement: Micro-orifice Design, Authoritative Data

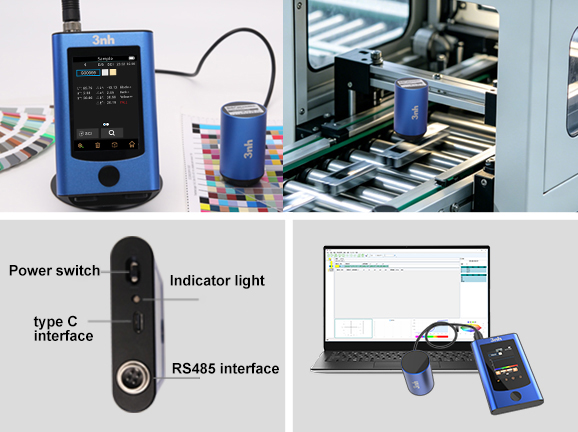

II. Strong Industrial Integration: Quality Control of Automated Production Lines

1. Dual-purpose and flexible deployment:The whole machine is suitable for manual measurement, while the probe mode can be independently connected to automated equipment to realize online color measurement on the production line.

2. RS485 / USB Communication: Supports multiple industrial communication protocols, and comes standard with an RS485 adapter for easy multi-device networking and collaboration.

3. Upper computer software support :Provides professional quality management software that supports real-time data transmission, storage, and analysis, facilitating traceability and report generation.

Strong Industrial Integration

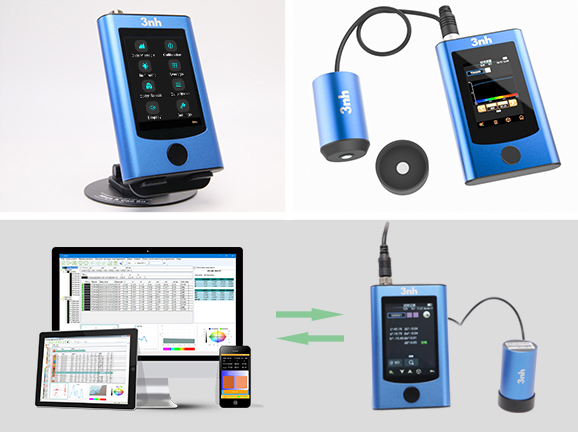

III. Easy to use: Intelligent interaction, quick and easy to learn

1. Intuitive interface : 3.5-inch TFT true color capacitive touch screen, simple to operate, no complicated training required.

2. Contact whiteboard calibration + auxiliary positioning lines :Simplify calibration and positioning processes and reduce human error.

3. Multi-system compatibility : Supports Android, iOS, Windows, HarmonyOS, and WeChat Mini Programs, enabling cross-device data synchronization.

Easy to use

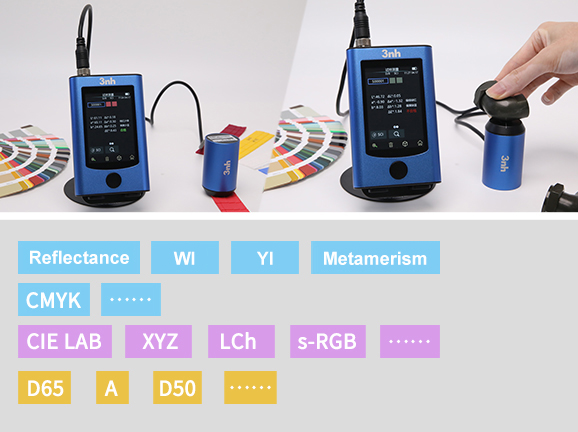

IV. Wide measurement range: adaptable to complex scenarios in multiple industries

1. Advantages of micro-orifice measurement: The 1mm micro-orifice diameter is suitable for color difference quality control and automated quality control of extremely small parts in industries such as plastics and electronics, paints and inks, textiles and clothing printing and dyeing, printing, and ceramics.

2. Multiple Colorimetric Indicators: Supports spectral reflectance, whiteness/yellowness (multiple standards), metamerism index (MI), and color density (CMYK) to meet the professional needs of industries such as printing, textiles, and plastics.

3. Multiple color spaces and observation light sources: Supports color spaces such as CIE LAB, XYZ, LCh, and s-RGB, as well as multiple observation light sources such as D65, A, and D50, adapting to different industry standards.

Wide measurement range

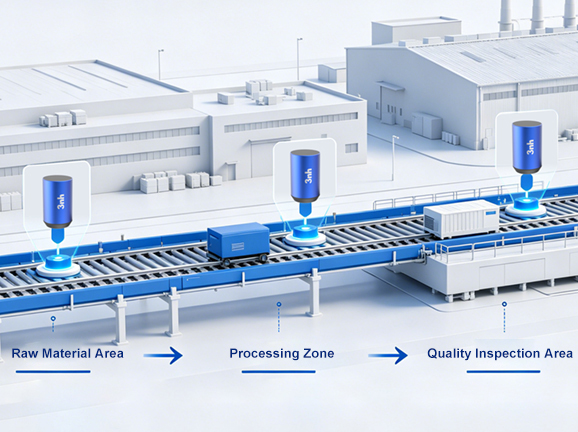

V. Strong Application Expansion: Automated Collaboration + Data Management

1. Multi-device collaboration: Supports simultaneous access of multiple devices, unified control and data aggregation, and adapts to multi-point detection in pipelines.

2. Data Synchronization and Traceability: The host computer software supports data storage, comparative analysis, and report export, facilitating quality traceability and process optimization.

3. Flexible integration: Provides standard communication interfaces such as USB, RS485, RS232, and Ethernet, supports external expansion and secondary development, and is easy to integrate into robotic arms to adapt to industrial systems.

Strong Application Expansion

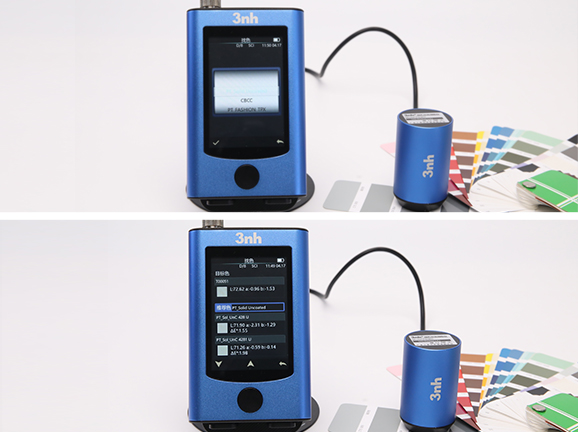

VI. Intelligent Matching: Built-in electronic color card for quick search of standard color codes.

1. Built-in multiple color cards: The instrument integrates multiple industry-standard electronic color cards, eliminating the need to consult physical color card books.

2. Rapid matching of physical objects : After measuring the color of the physical object, the instrument automatically matches the closest standard color card number, quickly completing color matching and confirmation.

3. Improve work efficiency :Applicable to scenarios such as color matching, incoming material inspection, and color number confirmation, reducing manual comparison errors and accelerating the workflow.

Intelligent Matching


Product Model PS301 Spectrophotometer
Lighting method D/8 (diffuse illumination, 8° direction reception), SCI (including specular reflection), conforming to standards CIE No. 15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164, DIN 5033 Teil 7
Characteristic Employing a dual-channel silicon photodiode array sensor with a built-in electronic color card, it is used for color difference quality control in industries such as plastics and electronics, paints and inks, textiles and apparel printing and dyeing, printing, and ceramics.
Lighting source Combined full-spectrum LED light source
Integrating sphere size Φ20mm
Spectrophotometry Nanoscale integrated spectral devices
Sensors Silicon photodiode array (dual-row, 18 groups)
Measurement wavelength range 400-700nm
Wavelength spacing 10nm
Measuring Diameter 1mm
Light-containing methods SCI
Color space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB
Color difference formula ΔE*ab
Other colorimetric indicators Spectral reflectance, WI (ASTM E313, CIE/ISO, ISO2470/R457, AATCC, Hunter, Taube, Berger, Stensby), YI (ASTM D1925, ASTM 313), metamerism index MI, color density CMYK
Observer's perspective 2°/10°
Observation light source D65,A,D50
show /
Measurement time Approximately 1 second
Repeatability Chromaticity value: Standard deviation ΔE*ab within 0.03 (average value of 30 measurements on a white board at 5-second intervals after preheating and correction). Spectrophotometric reflectance: MAV/SCI, standard deviation within 0.1% (400~700nm: within 0.2%).
Inter-platform difference ΔE*ab within 0.4 (average value measured from 12 color swatches of BCRA Series II)
Display accuracy 0.01
Reflectivity measurement range 0-200%
Reflectivity resolution 0.01%
Measurement method Single measurement, average measurement (2~99 times)
Positioning method Auxiliary positioning lines
Whiteboard verification method Contact Whiteboard Verification
size Main unit: 80*132*20; Probe: φ43*73.5
weight Main unit: 250g; Probe (including calibration box): 240g
Battery power Lithium battery, 3.7V, 3200mAh, 15,000 cycles in 9 hours.
Lifespan of lighting sources More than 3 million measurements in 10 years
Display screen 3.5-inch TFT true color capacitive touchscreen
interface USB, Bluetooth, RS485 (probe)
Store data 500 standard samples, 10,000 test samples, massive storage via APP/PC
Software support Android, iOS, Windows, WeChat Mini Programs, HarmonyOS
language Simplified Chinese, English, Traditional Chinese, Russian
Operating temperature range 0~40℃, 0~85%RH (non-condensing), altitude: below 2000m
Storage temperature range -20~50℃, 0~85%RH (non-condensing)
Accuracy Guarantee Ensure measurement compliance
Standard Annex Power adapter, data cable, instruction manual, quality management software (downloadable from the official website), white calibration box, positioning plate, Bluetooth adapter, RS485 adapter
Optional accessories Mini printer
Note: Subject to change without notice.



Our Valued Clients

  • customer cubic logo
  • Clients gsk logo
  • Client mankind
  • vtech logo vector
  • 3NH customer atlas
  • Client mohani logo
  • customer swaraj
  • customer nesling logo

FAQs About  Portable Spectrophotometers

When detecting color differences, the first factors to consider when selecting a light source include its stability, directionality, lifespan, and the effectiveness of the ultimately obtained spectral curve. The illuminant of a colorimeter is a fixed bulb, such as a tungsten lamp，LED light or a long-life xenon lamp. However, for the same color sample, the results displayed by the instrument vary under different light sources. This is because different light sources cause different absorption and reflection of light on the sample, leading to differences in how both the human eye and the instrument perceive the color.

In general, the D65 light source is used in the application of coil steel inks for construction. The D65 light source is equivalent to average daylight. Most coil steel inks for construction are used outdoors, and sunlight is regarded as the standard light source in outdoor environments. For household appliance coil steel inks, due to their usage characteristics, they are mostly used indoors. Therefore, the A standard light source is adopted for color measurement of samples based on indoor lighting conditions. The A light source is a carefully specified tungsten light source. Other light sources, such as fluorescent light sources, can be used in many types of applications. For example, some textile factories use fluorescent light sources. Therefore, a reasonable light source should be selected as the mutually recognized measurement method based on actual usage conditions and user requirements. Once agreed upon by both parties, color measurement must be conducted under the same conditions. This helps reduce unnecessary systematic errors and human errors, achieving the optimal consistency in color measurement.

The 3nh high-precision spectrophotometric colorimeter adopts a combined LED light source with long lifespan and low power consumption, which includes UV (ultraviolet) and UV-excluded options. This design can meet the color difference detection needs of different users and supports the selection of multiple light source modes.

For wallpaper color consistency & quality control (including solid-color, printed, textured, and embossed wallpapers), these 3nh spectrophotometers deliver optimal performance:


1. TS8560 Benchtop (Lab & R&D – Best Accuracy)

  • d/8° integrating sphere, SCI/SCE dual mode

  • ΔE*ab ≤ 0.01 (repeatability), IIA ≤ 0.1

  • Multi-apertures (Φ3/8/15/25mm) — ideal for large patterned wallpapers

  • UV control (for optical brighteners in paper)

  • Best for: Lab formulation, color standardization, batch-to-batch consistency

  • TS8560 Benchtop instrument


2. TS7700 Portable (Production & Field)

  • d/8° (SCI/SCE), ΔE*ab ≤ 0.02

  • Handheld, fast, non-destructive

  • Large aperture (Φ20mm) averages out texture/pattern unevenness

  • Best for: Production line checks, warehouse incoming inspection, on-site matching

  • TS7700 Portable spectrophotometer instrument

3. PS2080 Portable (Textured/Patterned Wallpapers)

  • d/8°, interchangeable apertures (Φ4/8mm + 1×3mm)

  • High stability for rough/embossed surfaces

  • UV included for fluorescent inks/papers

  • Best for: Complex printed, textured, or metallic-effect wallpapers

  • PS2080 Portable spectrophotometer

4. NS800 (Cost-Effective Routine QC)

  • 45/0 geometry, ΔE*ab ≤ 0.04

  • Touchscreen, easy operation

  • Best for: Uniform solid-color wallpapers, basic production QC

  • NS800 Hand Held Spectrophotometer

Short Recommendation

  • Top lab precision: TS8560

  • Best portable production: TS7700

  • Best for textured/patterned: PS2080

  • Economical routine QC: NS800

All ensure stable, repeatable color measurement for wallpaper rolls, panels, and printed patterns.


The Ideal Accurate and User - Friendly Spectrophotometer for Your Needs

This Spectrophotometer device measures the reflectivity，absorbance, transmittance, and fluorescence of light passing through samples, providing invaluable data for a wide range of applications, provide unrivaled accuracy for reliable results.

Selecting an appropriate spectrophotometer offers significant advantages for precision color analysis and quality control. When choosing an accurate and user - friendly spectrophotometer, consider factors such as wavelength range, sensitivity, sample handling options, and available software features. By investing in the right spectrophotometer, you can streamline your analytical processes, obtain more accurate results, and enhance the overall efficiency of your laboratory or industrial operations.

 Choosing the right model—whether portable, benchtop, or inline—aligns technology with specific industry needs, ensuring long-term reliability and optimized color management.

Yes, we offer free samples for test, you are welcome to order samples to experience our excellent quality and service.

Always a pre-production sample before mass production; Always final Inspection before shipment;
