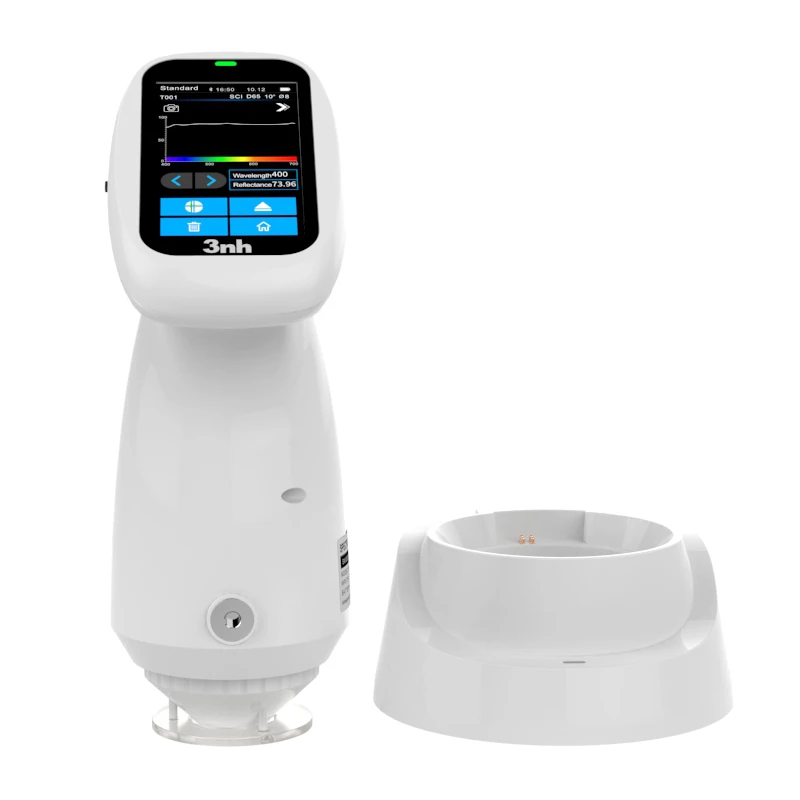

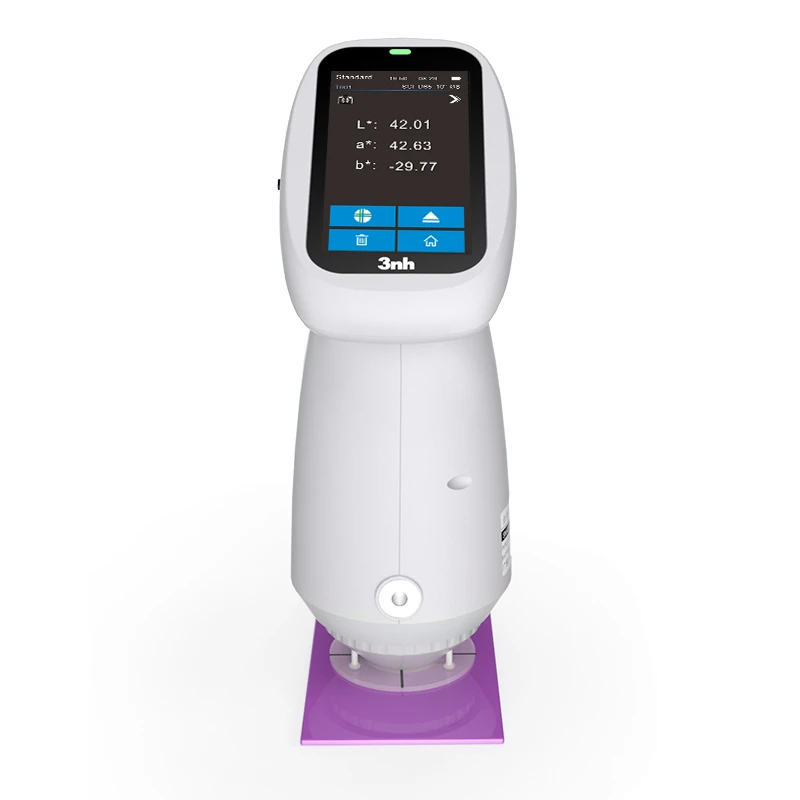

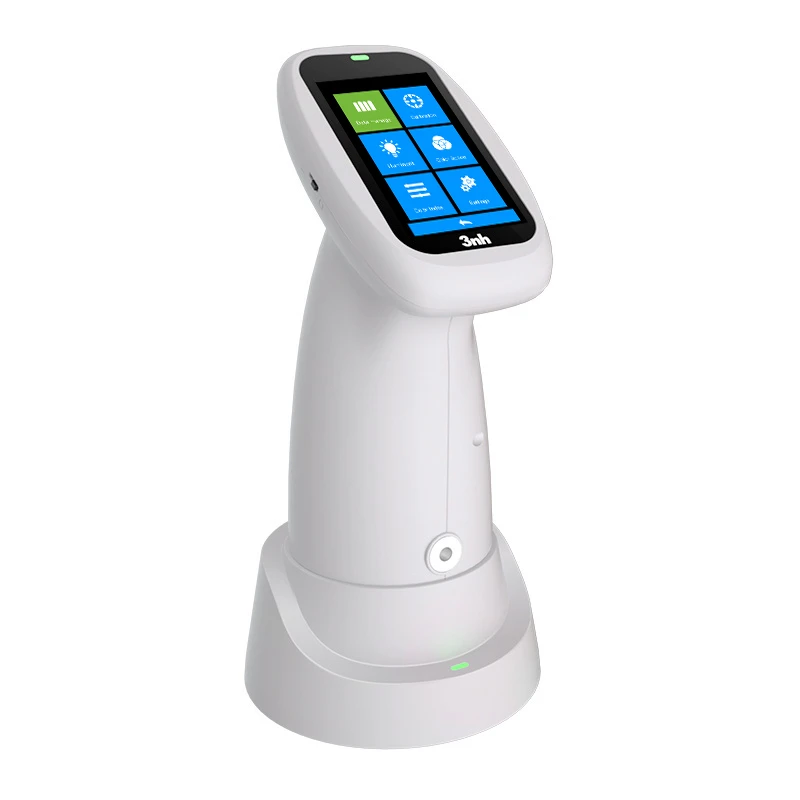

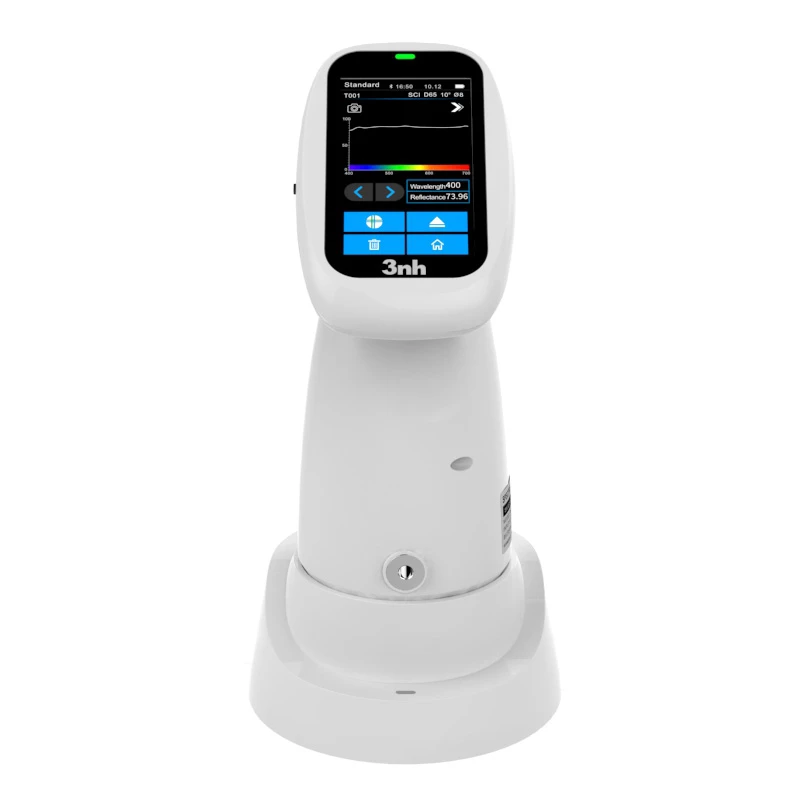

PS110 Spectrophotometer

PS110 Spectrophotometer Instructions Operating Manual PS110 Spectrophotometer PDF
This PS110 Spectrophotometer Instrument are Certified with
certify
1 Years Warranty (Additional support period of 3 years)

PS110 is a professional and high-efficiency spectrophotometer equipped with a dual-row 16-group silicon photodiode array sensor, delivering excellent repeatability and inter-instrument consistency, ensuring stable and accurate measurement data. Adopting the internationally adopted D/8 optical structure and SCI technology, it is equipped with Φ4mm (flat + conical) measuring apertures, satisfying color management and quality control requirements in coatings, textiles, plastics, food, building materials, cosmetics and other industries.

Product Features

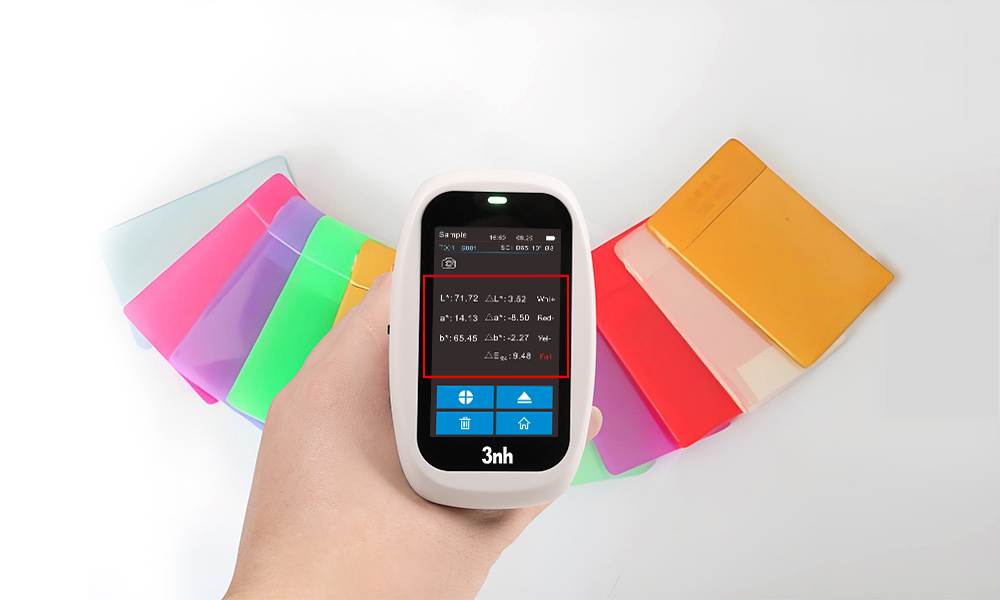

1. Excellent Measurement Performance

Professional Spectral Technology: With D/8 illumination and dual-row 16-group silicon photodiode array sensor, it accurately measures spectral reflectance within 400-700 nm.
Wide Aperture Compatibility: Φ4mm/Φ5mm (flat + conical) apertures adapt to various complex sample surfaces for high-precision color measurement.
High Repeatability: After warm-up calibration, the standard deviation of chromaticity value ΔE*ab ≤ 0.02, and spectral reflectance standard deviation ≤ 0.08%.
Low Inter-Instrument Difference: ΔE*ab ≤ 0.4 under MAV/SCI mode, ensuring high data consistency among multiple instruments.

1.Excellent Measurement Performance.jpg

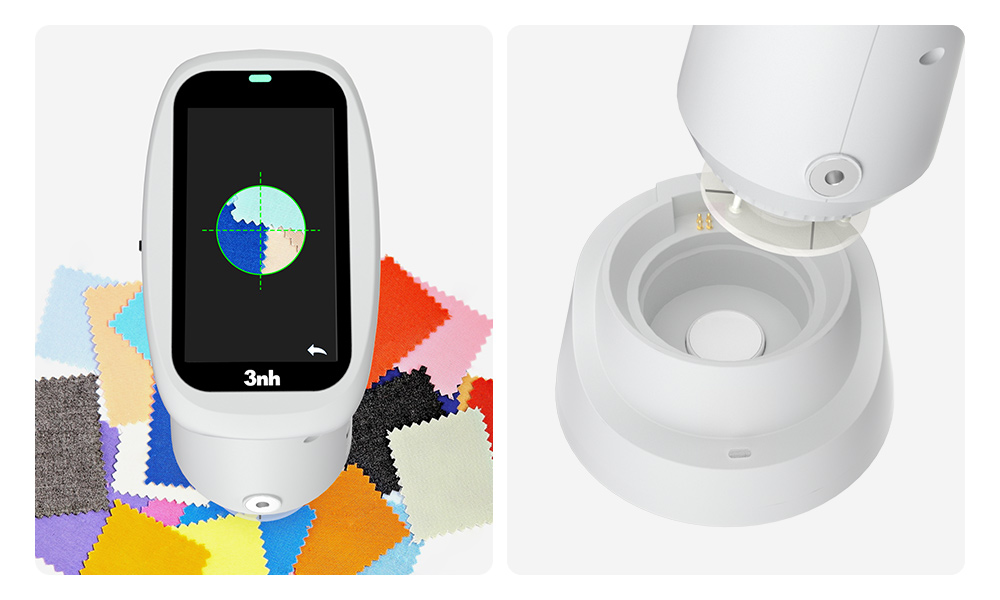

2. Easy Operation

Precise Positioning: Stable sheet positioning with flat + conical apertures enables easy targeting of small or irregular samples.
Simple Calibration: Supports contact whiteboard calibration, which can be completed in minutes.
Intuitive Interface: 2.8-inch TFT true-color capacitive touch screen displays spectral graphs, color values, color differences, pass/fail results, color simulation and color tendency.

2.Easy Operation.jpg

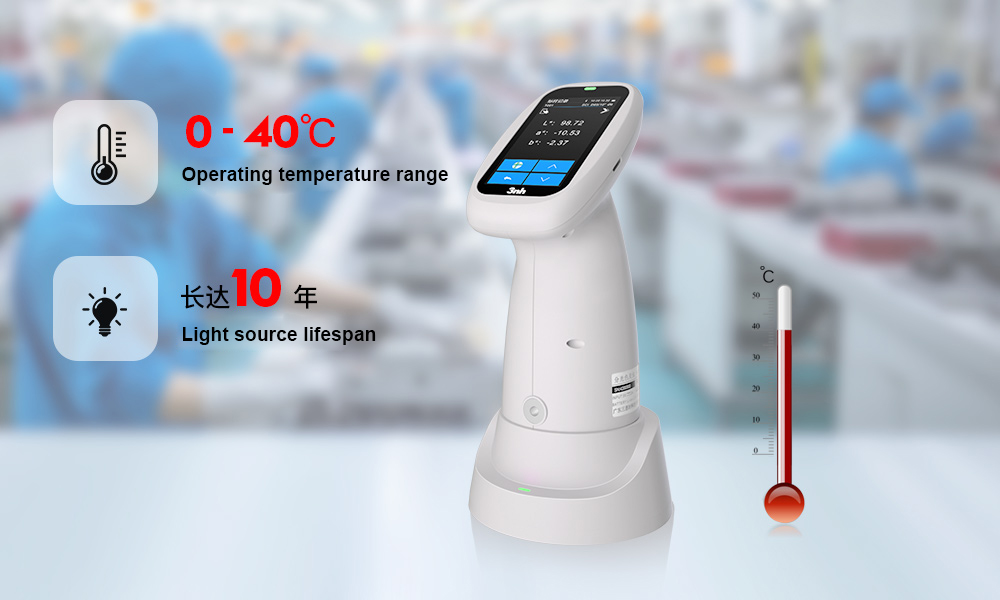

3. Strong Environmental Adaptability

Wide Temperature Range: Stable operation at 0-40°C, suitable for workshops and laboratories.
Durable & Reliable: Full-spectrum LED light source lifespan up to 10 years (＞1.2 million measurements); rugged housing for industrial environments.

3.Strong Environmental Adaptability.jpg

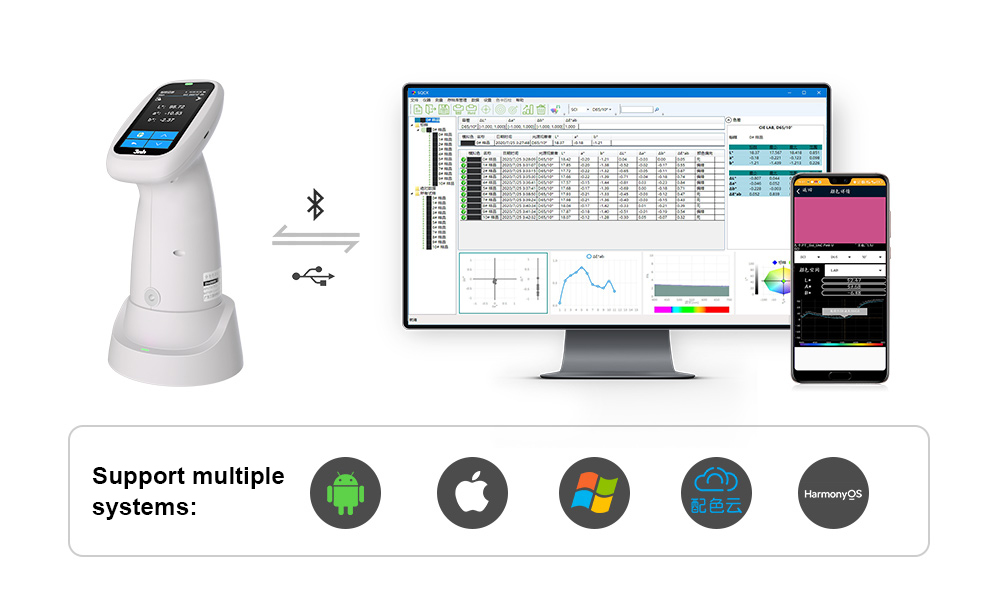

4. Excellent Data Management

Large Capacity Storage: Stores 200 standard samples and 10,000 test samples (SCI/SCE data supported simultaneously).
Multi-Device Connectivity: USB and Bluetooth®5.0 interfaces; compatible with Android, iOS, Windows, WeChat Mini Program and HarmonyOS for data transmission, sharing and remote management.

4.Excellent Data Management.jpg


Applications

PS110 spectrophotometer is widely used in plastics & electronics, paints & inks, textiles & garments, printing, ceramics and other industries. It supports full-process color quality control from raw material inspection, production monitoring to finished product testing, playing a key role in improving product quality and ensuring color consistency.



Spectrophotometer

Product Model

PS110 Spectrophotometer

Illumination/Viewing

D/8 (Diffuse/8°), SCI (Specular Component Included)Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO 7724-1, ASTM E1164, DIN 5033 Teil7

Features

Color quality control for plastics, electronics, paints, inks, textiles, printing, ceramics, etc.

Light Source

Full-spectrum combined LED

Integrating Sphere

Φ40mm

Spectral Device

Nano-integrated spectral sensor

Sensor

Dual-row 16-group silicon photodiode array

Wavelength Range

400-700nm

Measuring Apertures

Φ4mm/Φ5mm(flat + conical)

Light Mode

SCI

Color Space

CIE LAB

Color Difference Formula

ΔE*ab

Other chromaticity indices

/

Observer

2°/10°

Illuminant

D65

Display

Spectrum graph/data, color value, color difference graph, pass/fail, color simulation, color tendency

Measuring Time

Approx.1s

Repeatability

Chromaticity value: MAV/SCI, standard deviation ΔE*ab ≤ 0.02 (after warm-up and calibration, average of 30 measurements on white tile at 5second intervals)
Spectral reflectance: MAV/SCI, standard deviation ≤ 0.08% (0.18% within 400-700 nm)

Inter-Instrument Agreement

ΔE*ab ≤ 0.4 (measured on 12 BCRA Series II tiles)

Display Resolution

0.01

Reflectance Range

0-200%

Reflectance Resolution

0.01%

Measuring Mode

Single measurement, average measurement (2-99 times)

Positioning

Stable sheet positioning

Calibration

Contact whiteboard calibration

Dimensions

94(L)×68(W)×188(H) mm (excluding calibration base)

Weight

410 g (excluding calibration base)

Battery

Li-ion 3.7V 3200mAh, up to 8000 measurements in 8 hours

Light Source Life

10 years or ＞1.2 million measurements

Screen

2.8-inch TFT true-color capacitive touch screen

Interface

USB, Bluetooth®5.0

Data Storage

200 standards, 10,000 samples; unlimited via APP/PC

Software Support

Android, iOS, Windows, WeChat Mini Program, HarmonyOS

Language

Simplified Chinese, English, Traditional Chinese

Operating Environment

0-40°C, 0-85%RH (non-condensing), altitude ＜2000 m

Storage Environment

-20-50°C, 0-85%RH (non-condensing)

Standard Accessories

Power adapter, data cable, user manual, QC software (downloadable), white calibration box, protective cover, wrist strap, measuring apertures

Optional Accessories

Mini printer, powder test kit

Note

Specifications are for reference only; subject to actual product


Our Valued Clients

  • QUEEN UNIVERSITY
  • Griffith UNIVERSITY
  • University of Connecticut
  • APPLIED MATERIALS
  • BASF Plastic Company
  • infieon
  • Lubrizol
  • LUND UNIVERSITY

FAQs About  Spectrocolorimeter

A colorimeter measures the amount of light and the wavelength that is absorbed by a solution. It is a sign that colored compounds are present and the level of their concentration. It is applied in the laboratory and industry to check the concentrations of chemicals, the color of products, and purity.


Record the L*a*b values of the sample and the reference with a calibrated spectrophotometer or colorimeter. Compute the difference in the color by use of ΔE. The lower the Delta E, the more accurate the result. The difference in energy, ΔE < 1, is generally assumed to be invisible to the eye.


In industrial production and quality control, color consistency is one of the core elements determining product quality. Whether it is the metallic paint for automobile coating, the dyeing effect of textile fabrics, or the ink matching in packaging and printing, subtle color deviations may lead to cost waste or damage to brand image.

The LAB color space defines colors with a three-dimensional model:

  1. Lightness (L): It indicates the lightness or darkness of a color, ranging from 0 (pure black) to 100 (pure white).

  2. Hue and Saturation (a and b):

    • The a-axis represents the red-green tendency, with positive values leaning towards red and negative values leaning towards green;

    • The b-axis represents the yellow-blue tendency, with positive values leaning towards yellow and negative values leaning towards blue.

It is a globally recognized standard and supported by most modern color measurement equipment. Color is quantitatively analyzed by measuring Lab values with instruments.


A Spectrophotometer color measuring device objectively determines the color of a surface. It is used wherever accurate color matching, reproducibility or deviation control is needed – for example in quality assurance, product development or incoming goods inspection.

Spectrophotometer color measuring devices primarily perform three key tasks:

Capture color information: They detect light reflected, transmitted, or emitted by a sample using optical sensors.
Quantify color data: They convert the captured optical signals into standardized numerical values, such as RGB, CMYK, or CIELAB coordinates.
Compare color consistency: They compare the measured color data of a sample against a target or standard to assess color accuracy and uniformity.


The various colors can be measured by the way a surface reflects, absorbs, or transmits light at different wavelengths. These responses may be measured using instruments such as colorimeters or spectrophotometers to give numeric values in a standardized color space such as L *a*b*.
